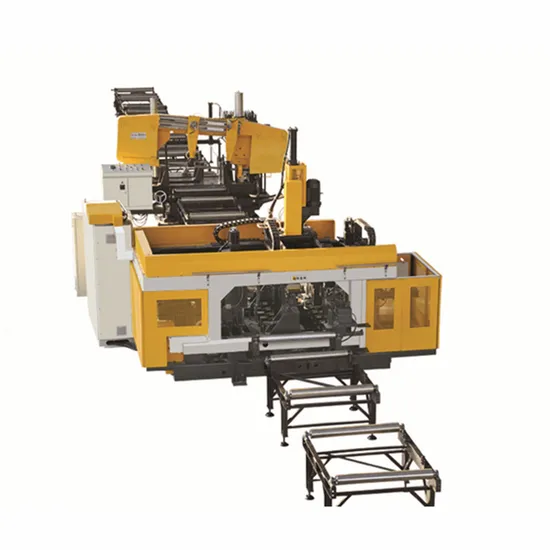

CNC Drilling Sawing Machine Line for Steel Beam Pipe Tube Plate Profiles Beam drilling milling Machine
(With Automatic Tool Changer)

This machine is mainly used for processing holes on H-beam, channel beam with high speed, the positioning, feeding of three spindles are all driven by servo motor. It adopts spindle servo motor, controls by CNC system, and in-feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in construction, bridge and other industries.

MACHINE FEATURES

1. The whole machine is optimized integrated design, with high quality casting machine body and drilling units, which ensure high stability and high rigidity when high speed drilling.
2. Used high-speed precision spindle from Taiwan's well-known brand, model BT40, which can meet the using demand of both hard alloy and high-speed steel drill. Every CNC axes are guided by the heavy loading roller linear guide, driven by the servo motor and roller screw which ensure the rigidity and positional accuracy.
3. With the trolley conveyor system and surface detector which realize the accurate positioning, ensure the processing precision.
4. Installed 3 inline type tool magazine, which realize the automatic tool change, also meet the demand of drilling multiple diameter's hole. Oil spray and air spray cooling, has inner cooling and outer cooling efficacy.
5. The CNC control system is the FAGOR/SYNTEC. Strong anti-interference, high precision, because of the digital communication, thus overcome the defect of easy be interference in traditional pulse analog transmission.
6. In order to ensure the accuracy, reliability and stability of transmission system, electrical system, hydraulic system, all the key components are from international famous brand.

TECHNICAL PARAMETERS

Model				THD1250C
Work Piece Size	H-Shaped Steel (web Height x flange width)		Max	1250 x 600mm
			Min	150 x 75
	Length (mm)	Auto Feeding		≥2700
		Manual Feeding		≥600
	Max Work piece weight(kg)			10000
	Max Thickness of web & flange(mm)			80
	Drilling Diameter (mm)			Φ32 for Carbide Drill Bit
				Φ40 for HSS bit
Drilling Spindles	Spindles number			3
	Rotating speeds(Steples speed adjustment)			30-3000rpm/min
	Power of Spindle Motors			3x11KW
	Feeding speed (mm/min)			20-300
Overall Dimensions(L x W x H)(mm)				6000x2100x3400
Gross Weight				≈18500 (Appr.)
