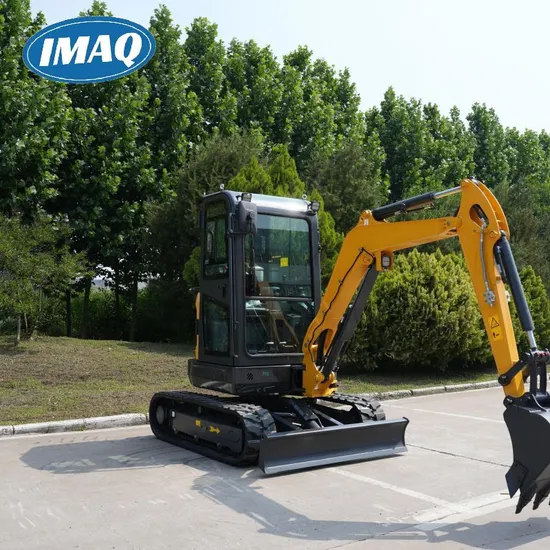

1ton 2 Ton 2.7ton 3 Ton 4ton 5ton Mini Crawler Excavator with Engine Type Yanmar 3tnv80f

Product Description

Intelligent comfort
Adopt 7 inch smart touch screen, integrate rich functions, human-computer interaction is more full and intelligent, improve the operating experience.
The position design of the instrument is more ergonomic, and the use is more convenient and comfortable.
Cab type, large space, wide vision, reasonable layout of the longitudinal device, convenient and comfortable operation.
Product Parameters

item	Unit	IMC27
Machine weight	kg	2700
Rated power	kW/rpm	14.6/2400
A surname	m³	0.065
Engine type	-	YANMAR 3TNV80F
Emission standard	-	Euro V, North American EPA 4
form	-	Three cylinder direct injection
displacement	L	1.267
Rated operating flow	L/min	95
Turning speed	r/min	10
Bucket digging force	kN	24
Bucket rod digging force	kN	14.8
Ground specific voltage	kPa	26
Travel speed	km/h	2.0-4.0
Climbing ability	-	0.7
Overall length	mm	4200
Overall width	mm	1550
Total height (to cab top)	mm	2480
Minimum ground clearance	mm	300
Wheel track	mm	1540
gauge	mm	1250
Track width	mm	1550
Maximum excavation height	mm	4390
Maximum unloading height	mm	3060
Maximum digging depth	mm	2800
Maximum excavation radius	mm	4800

Product Description

It is equipped with Japanese Yanmar engine to meet European V, North American EPA 4, and non-Tao country 4 emissions, energy saving and environmental protection, and strong power.
Load sensitive system, fast response, high efficiency, superior handling.
The walking motor has automatic speed regulation function, and the walking efficiency is higher.


The machine has all the functions
Tailless rotation, suitable for narrow space operation, the tail is safer, the boom side swing, the corner wall root work without dead Angle.
Standard auxiliary pipe, optional second set of auxiliary pipe, can meet the configuration of a variety of accessories.

Intelligent comfort
Adopt 7 inch smart touch screen, integrate rich functions, human-computer interaction is more full and intelligent, improve the operating experience.
The position design of the instrument is more ergonomic, and the use is more convenient and comfortable.
Cab type, large space, wide vision, reasonable layout of the longitudinal device, convenient and comfortable operation.



Other mini excavator
Accessory
Company Profile
IMP Group, founded in 2021 with a registered capital of 30 million yuan,IMAQ is a subsidiary,Headquartered in Xuzhou, Jiangsu Province. As a national high-tech enterprise, the Group integrates research and development design, production and manufacturing, international trade, e-commerce, and logistics transportation. Driven by technological innovation, IMP continuously develops more than 40 categories of new and practical mechanical equipment, such as wheeled excavators, drilling machinery, new energy photovoltaic pile drivers, and more. Covering an area of over 35,000 square meters, the factory currently employs more than 100 people. It continues to introduce new excavation equipment, enabling customers to achieve multi-functionality and increased profitability.
IMP attaches great importance to intellectual property rights and talent cultivation, holding over 10 invention patents and more than 30 utility model patents. Its products have passed quality and safety inspection certifications from the EU CE, Germany TUV, France BV, among others, and its business reaches across Asia, Africa, North America, and Oceania.
Adhering to the principle of reputation and service as its foundation, IMP offers a one-stop service system including product experience, user training, maintenance support, and parts supply. Its user-friendly and intelligent high-quality services have received widespread praise and recognition from customers.
Committed to becoming a preferred brand for customers, IMP strives to provide cost-effective products and services. Heading towards the goal of establishing a century-old brand and a top-tier enterprise culture, the company will continue to move forward.
Production line
Buyer feedback
Packaging & Shipping

FAQ
1.Q:Can The Factory Support Mass Production? Can I Purchase A Customized Sample First?
A:Dear friends, IMAQ company can support mass production. It can mass produce 200+mini excavator in one month, and can support customization (one piece is fine), but it cannot provide free prototypes. Please forgive me, my friend! 2.Q:Can It Be Transported To My Door? I Want To Get My Favorite Mini Excavator Soon? A:Of Course, My Friend, But If Your Family Is Located Very Close To The Port, We Suggest That You Can Go Directly To The Port To Transport Your Goods, So You Can Save A Lot Of Money! If The Distance Is Long, You Can Find An Inland Transportation Company By Yourself, And We Can Communicate With Him; We Can Also Find An Agency For You, But The Toll Will Be Very High (Not Recommended)
During Transportation, We Will Not Charge Any Intermediate Fees And Additional Service Fees Other Than Freight. We Just Want You To Get Your Favorite Mini Excavator Earlier. 3.Q:How Can I Guarantee After-Sales After I Buy It? A:Dear friends, our machine has a one-year/1000H work warranty period. During this time, if there is any problem with the machine itself, we will repair it for you free of charge, but if it is man-made damage, we will Not responsible for the maintenance of the machine, please forgive me, my friend.
