High Precision Universal Cylindrical Grinder Grinding-Machine for Metal Processing

Product Description

One-stop Shopping
Please click on the picture to enter related category products

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

Product Description

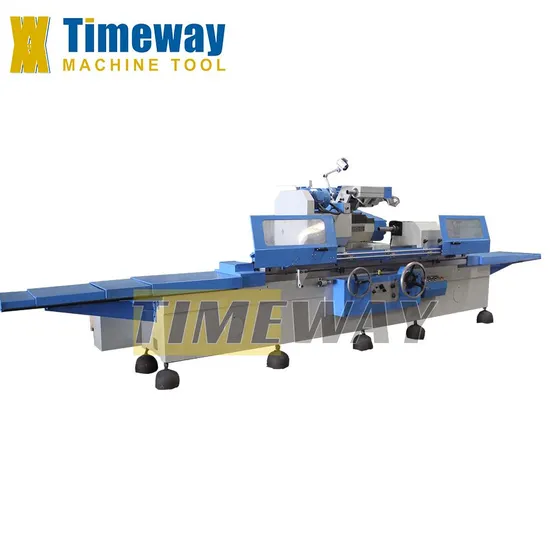

Universal Cylindrical Grinding-machine
1 The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
2 Wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
3 For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.

SPECIFICATION	UNIT	G-500(G-500A)	UG-500(UG-500A)
Distance between centers	mm	1500/2000/3000/4000	1500/2000/3000/4000
Center height	mm	270	270
Dia. ground(O. D)	mm	25-500	25-500
Dia. ground(I. D)	mm	-	30-200
Grinding length(O. D)	mm	1500/2000/3000/4000	1500/2000/3000/4000
Grinding length(I. D)	mm	-	320
Loading capacity	kg	1000(2000)	1000(2000)
Workhead swivel angle	°	-	+90°
Workhead spindle taper	-	MT6	MT6
Workhead spindle speed	rpm	18-180(10-100)	20-224
Wheelhead spindle speed	rpm	870	1330/665
Wheelhead rapid feed travel	mm	100	100
Wheelhead cross travel	mm	438	370
Wheelhead swivel angle	°	-	30°
Wheelhead feed of handwheel per rev. (rough/fine)	mm/rev	4/0.5	4/0.5
Wheelhead feed of handwheel per gra. (rough/fine)	mm/gra	0.02/0.0025	0.02/0.0025
External grinding wheel size	mm	750x75x305	500x75x305
Max.peripheral speed of grinding wheel	m/s	35	35/17.5
Internal grinding spindle speed	rpm	-	10000
Internal grinding wheel size	mm	-	Max: 175x32x32 Min: 30x25x10
Table feed of handwheel per rev.	mm	5	5
Table swivel angle(CW)	°	3°/2°/2°/1°	3°/2°/2°/1°
Table swivel angle(CCW)	°	6°/5°/3°/2°	6°/5°/3°/2°
Table longitudinal feed speed	m/min	0.1-3	0.1-3
Tailstock quill taper	-	MT6	MT6
Tailstock quill travel	mm	70	70
External grinding motor power	kw	15	5/7.5
Internal grinding motor power	kw	-	1.5
Workhead motor power	kw	4(7.5)	4(7.5)
Gross weight	tons	10/11/13/17	10/11/13/17
Packing size(LxWxH)	cm	510/585/785/1000x228x210	510/585/785/1000x228x210

STANDARD ACCESSORIES: Measuring bridge plate, Open steady rest, Wheel flange, Wheel extractor, Balancing arbor, Grinding wheel, Coolant tank, Carbide tripped center, Driving dog, Wheel dresser (Without diamond pen), Work lamp, Internal grinding attachment (UG), 3-jaw chuck (UG), Extension shaft (UG), Internal grinding wheel (UG), Full set tools, Leveling wedge, Operation manual (English edition).

OPTIONAL ACCESSORIES: Balancing stand, Digital readout, Close steady rest, End wheel dresser, Radius wheel dresser, Center grinding attachment (G), Magnetic separator, Paper filter.

Detailed Photos

The workhead spindle, wheelhead spindle, internal grinding spindle are driven by separate motors.

Worktable with hydrostatic pressure support for large loading and low wear

Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
