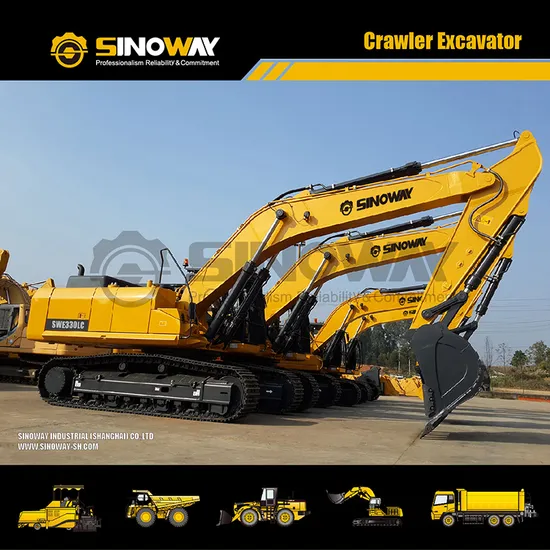

Excavating Machinery 33 Ton Hydraulic Excavator Digger for Sale
| US$140,000.00-142,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SWE330LC
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
>1.5m³
Size
Large-Scale
Certification
ISO9001: 2000, ISO14001
Condition
New
Max. Cutting Height
10215 mm
Max. Digging Depth
7625 mm
Max. Reach
11300 mm
Hydraulic System
Kawasaki
Warranty
One Year
Brand
Sinoway
Model
Swe330LC
Engine Make
Cummins
Transport Package
Naked
Specification
ISO
Trademark
SINOWAY
Origin
China
HS Code
84295212
Production Capacity
200 Units/Month
Product Description
HighlightsHeavy duty Undercarriage
With X-shaped frame built from high strength tensile steel, the undercarriage is designed to withstand the toughest conditions.Continuous digging, lifting and loading can put excessive stress on machines. The SWE330LC has a long track beam and crawler system that guarantees greater stability. The structure also helps protect key components such as the travel motor from undue stress.
Tougher Components
The undercarriage components are tougher too. Heavy duty rollers,reinforced idler frame and optional full track guard guarantee the integrity of our undercarriage. It's this core strength that enables our customers to keep working and earning - around the clock.
Stronger Upper Structure
The upper structure of the SWE330LC is built around a reinforced and well-engineered H-beam, allowing the boom to be mounted exactly in the center of the machine. This central positioning helps the boom cope with more stress on the attachment group. It also means better distribution of weight and tension along the entire machine.
Product Show
Specifications
| Engine | |
| Model | CUMMINS |
| Type | Six-cylinder,water-cooled, turbocharged,mechanical injection |
| Rated power | 166KW |
| Rated speed | 2200rpm |
| Main Technical Specification | |
| Operating weight | 33000Kg |
| Standard bucket capacity | 1.53m3 |
| Slewing speed | 11rpm |
| Stick digging force | 104KN |
| Bucket digging force | 137KN |
| Travelling System | |
| Travelling speed | 2.9-5.1km/ |
| Grade ability | 65% |
| Ground pressure | 0.069MPa |
| Dimensions | |
| Overall length | 11140mm |
| Overall width | 3280mm |
| Overall height of boom | 3540mm |
| Overall height of cab | 3010mm |
| Engine cover height | 2650mm |
| Counterweight clearance | 1235mm |
| Ground clearance | 470mm |
| Upperstructure width | 2960mm |
| Rear-end length/Slewing radius | 3215mm |
| Overall track length | 4690mm |
| Track length on ground | 3780mm |
| Track gauge | 2580mm |
| Track width | 600mm |
| Boom slewing angle(L/R) | 0o |
| Operating Scope | |
| Arm length | 3200mm |
| Max. cutting height | 10215mm |
| Max. dumping height | 7390mm |
| Max. digging depth | 7625mm |
| Max. reach | 11300mm |
