Hydraulic Platform Elevator for Goods
| US$1,000.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJD0.5-10
Speed
100mm/S
Drive Mode
Hydraulic
Open & Close Type
Automatic
Lift Mechanism
Lift Chain
Deceleration Device
With Deceleration Device
Guide Rail
T Guide
Elevator Door
Center Opening Door
Door Knife
Double
Attendant
Without Attendant
Color
Customized
Material
Double T
Table Size
1500*1200mm or Customized
Lifting Height
5m or Customized
Power
3kw
Control
Buttons or Remote Control
Transport Package
Standard Export Packing
Specification
CE
Trademark
Moral
Origin
Jinan, Shangdong, China
HS Code
842890
Production Capacity
50, 000 PCS/Year
Product Description

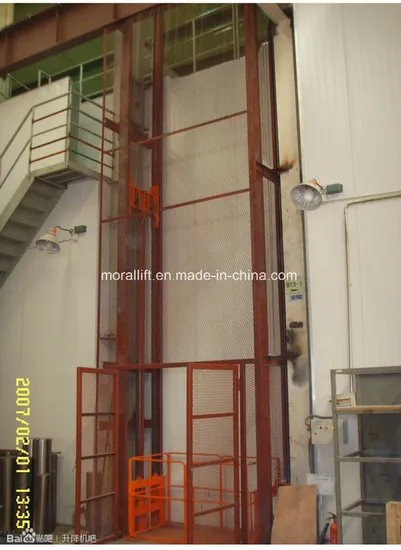

Hydraulic Platform Elevator for GoodsVertical lift--Lead rail hydraulic lifting platform is used for transfer cargo between different floors. Self-height is about 150-300mm. This platform can install on the ground directly or make one pit. Hydraulic drive, steady working and simple operate.
This machine provide fast, efficient, convenient and safe access to or from mezzanines, balconies, basements, and between levels in multiple story buildings. They can be installed for through-floor, interior or exterior applications. The principle components of machine include guide columns, carriage and a mechanical or hydraulic actuating mechanism.
We offer the most complete line of machine from mechanical to hydraulic to fully automatic, customized systems for automated manufacturing and warehousing operations. Machine are available in capacities from 100kg. To 100, 000kg.
1) chain lifting platform features lifting the goods through the different floors.
2) chain lifting platform----hydraulic driven and lift by chain.
3) special lifting chain and have long use life.
4) the close height is low so don not need pit installation.
5) closed type structure, safe and easy to clean.
| Model | SJD0.5-10 |
| Load capacity | 500--1000KG |
| Platform size | 1500*1200MM |
| Lifting height | 10000MM |
| speed | 100mm/s |
| power | 3kw |
| power supply | AC 220V/380V 50HZ/60HZ |
| weight | 800KG |
