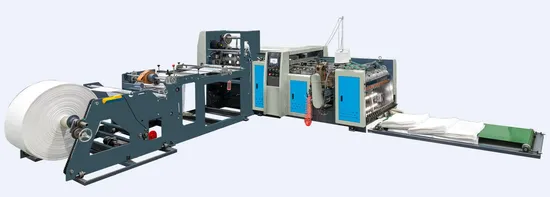

Automatic PP Woven Bag Cutting and Sewing Machine for Woven Bag, PP Woven Bag Sack Printer Machine, Polypropylenewoven Bag Conversion Machines

Product Description

Product Description
The woven cloth will be automatically thermally cut off in a fixed length and sewed, and laborsaving can be realized. Driven by serve motor, the length of bag can be precisely controlled. Sticking is avoided after the bag being thermally cut off. The machine will stop automatically when the cloth is over. The running method in manual or automatic is available. Pneumatically driving is adopted in cloth releasing and can be easily operated.

Model	QF-850
Max. dia. of unwinding cloth	1500mm
Width of unwinding cloth	300-850mm
Cutting Length	500-1250mm
Cutting length accuracy	±1.5mm
Bottom folding width	20-30mm
Production capacity	20-36pcs/min
Sewing unit	Newlong Japan, DN-2HS
Stitching range	5-7mm
Main motor	3.7kw
Power of heating cutting	2kw
Total power	9.5kw
Weight (About)	1800kg
Overall dimensions (L×W×H)	5030×3010×1600mm

Detailed Photos
Company Profile Since 1998, Zhejiang Tianfeng Plastic Machinery Co., Ltd. has been a professional manufacturer for designing, manufacturing and developing of the production machinery of plastic flexible weaving package products in China. The company has passed ISO9001:2008 international quality management system certification, is member of both China Plastics Processing Industry Association (CPPIA) and China Plastics Machinery Industry Association (CPMIA), the High & New Technological Enterprise (H.N.T.E.) of State.
The company covers a total area of over 65,000 m², including over 50,000 m² of workshops and office buildings.
Tianfeng Machinery supply not only independent machine with good quality and price, but also the whole production line solution for the whole plant with our good technology and rich experience. We are committed to provide our every customer the best reasonable and optimal production line solution to help them get best ROI (return on investment).
Our main products include: high-speed, middle-speed and economic type plastic tape extrusion production line, tape winder, circular loom, plastic extrusion coating machine, laminating machine, flexo printing machine, PP block bottom valve bag making machine (hot air welding), woven bag automatic cutting and sewing machine, plastic monofilament extrusion line, plastic rope making machine and other auxiliary machines. All of these products have successfully covered in 5 continents and more than 60 countries and regions in the globe, such as following:
Asia: China, Mongolia, North Korea, Kazakhstan, Uzbekistan, Turkmenistan, Tajikistan, Kyrgyzstan, Georgia, Azerbaijan, Indonesia, Malaysia, Vietnam, Thailand, Philippines, Myanmar, Cambodia, Laos, Bangladesh, India, Pakistan, Sri Lanka, Iran, Turkey, Iraq, Syria, Yemen, Jordan, Israe, Lebanon, Afghanistan, etc.
Africa: Egypt, Lybia, Tunisia, Algeria, Morocco, Ethiopia, Kenya, Tanzania, Uganda, Ghana, Nigeria, Chad, Cameroon, South Africa, Zambia, Angola, Zimbabwe, etc.
Europe: Russia, White Russia, Italy, Ukraine, Serbia, etc.
North America: U.S.A., Canada;
South America: Brazil, Mexico, Peru, Venezuela, Cuba, Uruguay, Paraguay, Ecuador, etc.
All along, we think that one important factor for our advances is from supporting each other between us and our every customer. We are willing to work together with our customers to develop, grow and succeed.
