Hot Selling Jinling-01b Cart Type Anesthesia Machine for Sugery ICU Equipment

Product Description

Hot selling JINLING-01B (ECONOMIC, STANDARD & ADVANCED MODEL) Cart type Anesthesia Machine For Sugery ICU Equipment
Common Features
Operating Modes: Pneumatically driven & electronically controlled, closed, semi-closed and semi-open
Anesthesia Ventilator: Built-in 5.4 inch TFT display, able-display Pressure-Time and Frequency-Time, displayed waveforms can be cycled instantly with a touch of a button
Standard integrated metallic modular respiratory circuit; completely solves the problem of gas sealing under high temperature disinfection, easy to clean and disinfect
Nonhazardous environmentally friendly frame, precise construction, elegant design, equipped with automated self-checking function during startup and an automatic self-calibrating sensor
High precision two tube flowmeter, fitted with interlocking oxygen-nitrous oxide supply, guarantees oxygen output is never lower than 21%
Oxygen failure alarm is supported by the anesthetic gas delivery system; when the oxygen supply within the circuit or cylinder falls below 0.20 MPa, a alarm will sound and the nitrous oxide will be cutoff
Power Failure Support Functions: Automatically converts to backup power mode during AC power outages
Alarms: Audible and/or visual alarms for tidal volume, airway pressure, power failure, oxygen failure and other alarms, also features a alarm query function
Equipped with infrared turbine flow sensor; precisely measures gas flows, stable and reliable
Vaporizer: Imported tank components assembled locally; Enflurane, Isoflurane and Sevoflurane (Halothane optional). Also possesses self-compensating functionality
Equipped with advanced international rotating Na-lime tank, easy-operate, requires only one hand, and uses imported PPSU material and temperature resistant to 134°C
Multi-parameter Patient Model: Optional
Advanced Model Exclusive Features
Vaporizer with dual tank design, effective for extending surgical lengths and features interlocking tank capability
Specifications

Model	Economic Model	Standard Model	Advanced Model
Display	5.4 inch TFT display
Flowmeter Range	O2: 0.1-10L/min
	N2O: 0.1-10L/min
Ventilation Mode	IPPV,SIPPV, IMV, SIMV, MANUAL
Back-up Power Supply	At least 4 hours
Tidal Volume	Adjustable range: 50-1500ml
	Display range: 0-2000ml
Respiratory Rate	1-99bpm
Oxygen Supply Flow Rate	25~75Lmin
Inspiratory/Expiratory (I:E) Ratio	4:1-1:10 (capable of inverse ratio ventilation)
Inspiratory Pressure Trigger	.-10-10cmH2O (electronically controlled)
SIGH	1 sigh breath in every 80-160 breaths
Vaporizer Concentration Ranges	0-5%
Vaporizer Slots	Single PA-80 type slot	SIngle PA-I type slot	Double PA-I type slots
Gas Supply Pressure	O2: 0.32MPa~0.6MPa: N2O: 0.32MPa~0.6MPa

Product Show

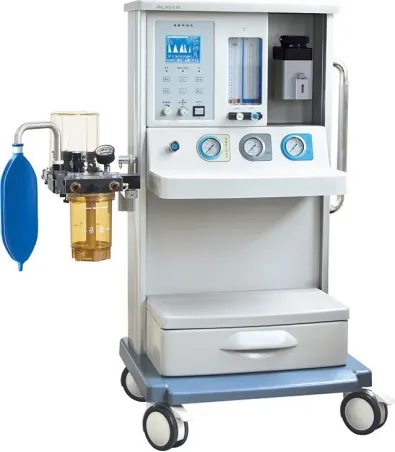

JINLING-01B Economic Model
JINLING-01BStandard Model
JINLING-01BAdvanced Model

Name	Perlong
MOQ	1 pc
Warranty	1 year
Package	One piece one carton
