High Speed PLC Annealing Automatic Low Noise Intermediate Dual Wire Drawing Machine Machineries Manufacturer Supplier Plant for Steel Brass Copper Aluminum Wire
| US$40,000.00-100,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Customized
Usage
Wire, Rope Wire, Prestressed Steel Wire, Standard Parts
Metal Material
Copper
Outlet Diameter
0.1-1.2mm
Max.Inlet Wire Dia.
22mm
Block Dia.
1200mm
Max. Number of Block
21
Certification
REACH, RoHS, ISO
Condition
New
Inner Diameter
5.5mm
out Diameter
1.6m
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Core Components
Motor PLC
Marketing Type
Ordinary Product
Key Selling Point
Easy to Operate
Number of Block
10
Max. Wire Feeding Speed
1000m/Min
Pot Arrangement
Upright
Machine Type
Fully Auto
Input Wire Tensile Strength
≤600MPa
Wire Feeding
From Left to Right
Mould Size
40mm*25
Wire Diameter
Inlet Max. 5.5mm and Outlet Min. 1.6mm
Transport Package
Wooden Box
Specification
27.5*7.7*28.6cm
Trademark
ACESUN
Origin
China
HS Code
8463102000
Production Capacity
100000 PCS/ Year
Packaging & Delivery
Package Size
35.00cm * 38.00cm * 200.00cm
Package Gross Weight
5.000kg
Product Description
| High Speed PLC Annealing Automatic Low Noise Intermediate Dual Wire Drawing Machine Machineries Manufacturer Supplier Plant for Steel Brass Copper Aluminum Wire |
| Model | LZ-560 |
| Dia. Of pot | 560 mm |
| Number of blocks | 10 |
| Wire diameter | Inlet Max. 5.5mm and outlet Min. 1.6mm |
| Compression (%) | Max. 91.54 |
| Average compression(%) | 21.88 |
| Input wire tensile strength | ≤600mpa |
| Max. wire feeding speed | 16.66m/ s (1000 m/ min) |
| Motor | 22KW |
| Mould size | 40mm* 25 |
| Pot arrangement | Upright |
| Wire feeding | From left to right |

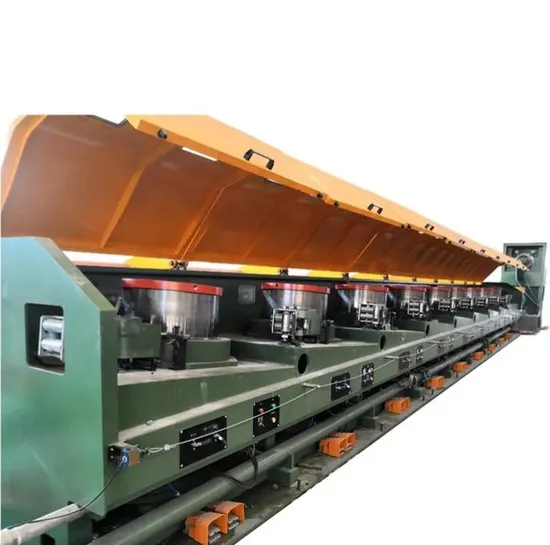

Wire drawing machine
The wire drawing machine, manufactures wire drawing. Part of the steel wire rod as raw material and reduces its diameter as much as you want.
It is the initial machine, indispensable to process steel wire and metallic mesh in its different applications.
With this machine you will not have to worry about buying and keeping in stock a lot of different diameters of black wire or galvanized wire.
By having this machine, you will only have to buy the wire rod in its primary state and you will be able to reduce its diameter for all kinds of uses.
Whether you market wire in different diameters or manufacture various types of mesh, our wire drawing machine is indispensable to work with all possibilities of diameters.
Q: If our input wire diameter is 5.5mm, output 1.6mm, should we choose pulley type wire drawing machine or straight-line wire drawing machine?
A: Input 5.5mm output 1.6mm it's better use straight-line wire drawing machine; Pulley type wire drawing machine suitable for final output Min, 2mm wire.
Q: What is the use of annealing furnace?
A: Improve and eliminate various structural defects and residual stresses caused by the wire in the drawing pass, and avoid deformation and fracture in future use; the annealed wire has better elasticity and flexibility.
Q: How to cooling the drum while working?
A: Our drum equip water cooling system;
Q: Can we use high carbon steel wire?
A: We can special design for you.
Q: What kind of container for delivery?
A: it's better use 1*40ft+ 1*20ft.
