Vane Pump Sealing Rubber Parts for New Energy Vehicles

Product Description

Product Description
Vane Pump act as a main part to provide vaccum negative pressure for Vaccum Bosster system. Plent is available to provide kinds of rubber sealing parts applied in Vane pump to asist vehicle's brake system
Detailed Photos

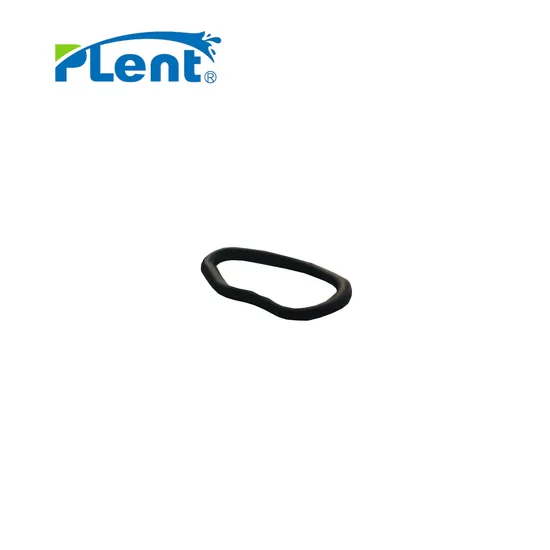

1. waist-shape Sealing Ring
2. Special Shaped Sealing Ring
3. Rubber Sealing Ring
4. Shock Pad
5. Shock Sleeving
6. Sheath
7. Silencer
8. Exhaust Silencer Washer

Product Parameters

Part Name	Dimension	Material	Working Temperature	Working Life	Hardness
waist-shape Sealing Ring	21.13*9.76*1.9mm	EPDM	-40ºC to 120ºC	1200000 times	60±5
Special Shaped Sealing Ring1	68*63.5*1.8mm	EPDM	-40ºC to 120ºC	/	60±5
Special Shaped Sealing Ring2	79*2mm	EPDM	-40ºC to 120ºC	/	55±3
Special Shaped Sealing Ring3	87.6*2mm	EPDM	-40ºC to 120ºC	/	60±5
Rubber Sealing Ring1	41*20.5*1.6mm	EPDM	-40ºC to 120ºC	/	60±5
Rubber Sealing Ring2	32*25*11mm	EPDM	-40ºC to 120ºC	/	60±5
Shock Pad1	23*8*19mm	Natural Rubber	-40ºC to 120ºC	/	60±5
Shock Pad2	25.5*8*30mm	Natural Rubber	-40ºC to 120ºC	/	60±5
Shock Sleeving1	18*6.2*18.2mm	Metal	-40ºC to 120ºC	/	60±5
Shock Sleeving2	29*18*6.3mm	Metal	-40ºC to 120ºC	/	60±5
Sheath1	21.5*62mm	EPDM	-40ºC to 120ºC	/	60±5
Sheath2	80.2*59*26.2mm	EPDM	-40ºC to 120ºC	/	60±5
Silencer	57.8*11.2mm	Silicone Rubber	-40ºC to 120ºC	/	60±5
Exhaust Silencer Washer	31.2*21.6*14.8mm	EPDM	-40ºC to 120ºC	1200000 times	60±5

Company Profile
Ningbo PLENT Machinery means to provide one-stop solution per customer needs. Our service ranges from tooling design, aluminum casting, machining and assembly in the areas of auto parts, to valves, nozzles and brackets etc. Sealing Rubber Parts for Auto are also available from us. With our own R& D Team, Plent is also capable to provide OEM and ODM services to worldwide customers.
We're always ready to welcome every customer's inquiry.

Company Photo
Our Advantages
Standard Production Line
Individual R&D Team
Professional Aftersales Service
OEM & ODM Available
