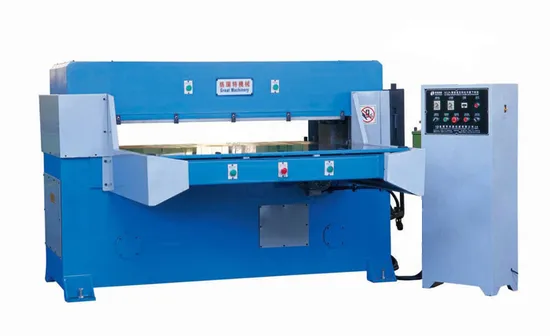

130t Precious Auto-Feeding Automatic 4-Column Plane Cutting Machine
| US$6,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HMT XCLP 3
Certification
CE, ISO9001, CE
Condition
New, New
Automatic Grade
Semiautomatic
Application Place
Factory
Applicable Thickness
Thick Material
Power Supply
Electric
Applicable Material
Rubber, Plastic, Genuine Leather, Polyester Knitted Fabric, Knitted Fabric, Denim, Velvet, Artificial Leather
Speed
100-120PCS/Min
Automation
Automatic
Logo Printing
Without Logo Printing
Customized
Customized
Applicable Objects
Various Paper Cups
Cup Size(Ounce)
All
Required Paper
All
After-Sales Service
Support
Transport Package
Standard Export Crate
Specification
1600*1120mm
Trademark
RS
Origin
China
HS Code
8453800000
Production Capacity
50 Sets Per Month
Packaging & Delivery
Package Size
2000.00cm * 1500.00cm * 2000.00cm
Package Gross Weight
2000.000kg
Product Description
Product Description 100T Automatic Feeding Precision Hydraulic Four-Column Plane Cutting MachineDetailed Photos
| Model | XCLP3-60 |
| Maximum cutting force | 60Tons |
| Distance from upper pressing board to worktable | 50-200mm |
| Cutting area | 1600×900mm |
| 1400×900mm | |
| Main motor power | 7.5KW |
| Electric Supply Voltage | 3x440/415/400/380/220/200V, 50/60 Hz |
| Machine weight (approximate) | 5500Kg |
| 5000Kg | |
| Application | leather processing, garment, shoe making, bag making, packaging, toys, stationery,auto inner decoration, and emulation flower industry |
Company Profile
Our Advantages
Factory
Packaging & Shipping
FAQ
Usage and features
1. 4-column type, double-cylinder driving units precision double-linkage automatic balancing structure are designed to get larger cutting force and completely the same depths between each cutting site.
2. PC ECI controls the cutting sites for excellent sensitivity and high cutting precision. Meanwhile the die and cutting board can have longer service life.
3. Special stroke setting device make the stroke adjustment simple and accuracy.
4. Automatic lubricating system guarantees the accuracy and service life of the machine
5. Energy storage of flywheel realizes the instantaneous cutting action
| Main technical parameters 1. Cutting force 400KN 2. Stroke range 50-190mm 3. Cutting speed 0.10m/s 4. Motor power 2.2KW 5. Effective working size of the up press plate 1600*600mm 6. Effective working size of the working table 1600*630mm 7. Weight 1850kg |
Contact me for more details or video !
