Ball Mill for Ore/ Cement /Gold/Sand/Coal Grinding Mill Price

Product Description

Product Description

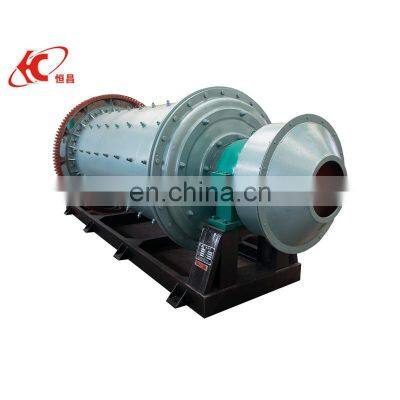

Product description of Ball Mill
The ball mill is a key equipment to grind the crushed materials, and the ball mill is widely used in powder-making production line including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc,and the ball mill can grind various ores and other materials with dry type and wet type. There are two kinds of ball mill, grate type and overfall type due to different ways of discharging material.
Product advantages of Ball Mill
1. It is an efficient tool for grinding many materials into fine powder.
2. The ball mill is used to grind many kinds of ore and other materials, or to select ore
3. Ball mill is widely used in building material, and chemical industry.
4. There are two ways of grinding: dry way and wet way.
5. Ball mill can be divided into tabular type and flowing type according to different expelling mine.
Product operating principle
The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and differentspecifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.
Technical parameter

Model	Cylinder speed (r/min)	Ball loading (t)	Feeding Size (mm)	Output size (mm)	Capacity (t/h)	Power (kw)	Weight (t)
MQZ900×1800	38	1.5	≤20	0.075-0.89	0.65-2	15	4.2
MG900×3000	38	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
MQZ1200×2400	37	3.8	≤25	0.075-0.6	1.5-4.8	30	11.5
MG1200×3000	37	5	≤25	0.074-0.4	1.6-5	37	12.8
MG1200×4500	37	6.6	≤25	0.074-0.4	1.6-5.8	45	13.8
MQZ1500×3000	29.7	8	≤25	0.074-0.4	2-5	75	16
MG1500×4500	29.7	12.5	≤25	0.074-0.4	3-6	90	22
MG1500×5700	29.7	15	≤25	0.074-0.4	3.5-6	110	24.7
MQZ1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
MG1830×4500	25	15.8	≤25	0.074-0.4	4.5-12	155	32
MG1830×6400	24.1	23	≤25	0.074-0.4	6.5-15	210	36.5
MG1830×7000	24.1	24	≤25	0.074-0.4	7.5-17	245	39
MQZ2100×3000	24.6	20	≤25	0.074-0.4	7.5-36	180	40
MQZ2100×4500	24.6	22.5	≤25	0.074-0.4	7.5-40	210	48
MQZ2200×6500	21.7	25	≤25	0.074-0.4	10-12	380	52
MQZ2200×7000	21.7	28	≤25	0.074-0.4	10-14	380	54
MQZ2200×7500	21.7	29	≤25	0.074-0.4	12-14	380	56
MQZ2400×10000	20.57	50	≤25	0.074-0.4	17-18	630	95
MQZ2400×11000	20.57	51.5	≤25	0.074-0.4	19-21	630	99.2
MQZ2400×13000	20.3	65	≤25	0.074-0.4	21-23	800	116
MQZ2600×11000	19.57	65	≤25	0.074-0.4	24-26	800	131
MQZ2600×13000	19.61	75	≤25	0.074-0.4	28-32	1000	149
MQZ3000×9000	18.34	78	≤25	0.074-0.4	28-32	1000	139
MQZ3000×11000	18.08	95	≤25	0.074-0.4	30-35	1250	143.5
MQZ3000×13000	18.08	108	≤25	0.074-0.4	33-37	1250	172.3

Our factory
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, is a professional manufacturer specializing in the production of mineral beneficiation equipments, sand and stone crushing equipments, briquetting equipments, coal preparation equipments, drying and calcining equipments, cement plant equipments and compound fertilizer equipments. The products are widely used in mineral processing, metallurgy, building materials, chemicals, electricity, petroleum, coal, transportation, fertilizer , gas industry.
Our service
1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.
(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.
(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the life-long follow-up service.
