Factory PE/PVC Rg59+2DC RG6 Camera Coaxial Cable CCTV TV Antenna

Product Description

Product Description Feature:
1.Greater signal reliability
2.Durable and Reasonable Design of the Structure Realizes the High Performance
3.Heavily shied to minimize interference
4.Fine Shields Protect the Data Transmission and Reduce the Interference
Applications:
1. CATV-community antenna television
2. CCTV-closed-circuit television , CCTV Camera installation.
3.DBS direct broadcasting satellite

Technical Data
High Quality Rg59+2DC Coaxial Cable for CCTV Camera

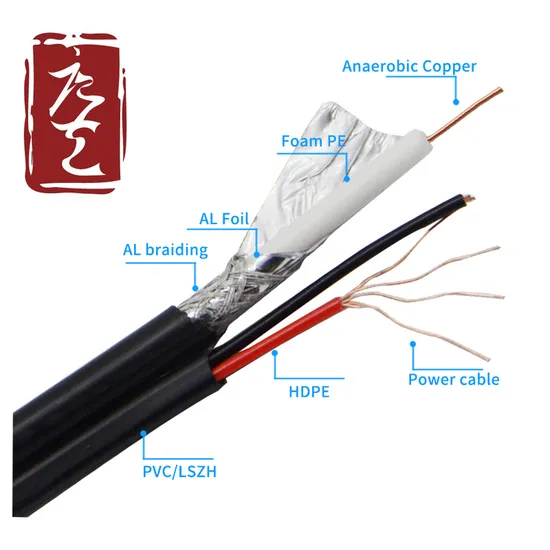

Item	RG59+2DC
Conductor	Material	BC(Customized optional: CCS/CCA/CCC)
	Diameter	0.81mm±0.02mm(20AWG)
Dielectric	Material	FPE/HDPE
	Diameter	3.66mm
Shield	Material	Al Foil(Customized Optical: APA/APG/BAPG)
	Width	14mm(Customized optional: 13mm)
	Overlap Rate	≥20%
Braid	Diameter	CCA braiding(Customized Optional: AL/BC)
	Coverage	40%-95%
Jacket	Material	PVC(Customized Optional: PE/PVC)
	Diameter	6.1mm±0.1mm
Power wire conductor	Copper/CCA	18AWG
Insulation of Power wire	PVC/PE	2.0mm

Cable Characteristics
Impedance	75±3 Ohm
Capacitance	50±3.0 μF/KM
Velocity of Propagation	83±2%
Shielding Effectiveness	55MHz	≥60dB
	300MHz	≥70dB
	1000MHz	≥70dB
Return Loss(100% swept)	1~470MHz	≥22dB
	470~1000MHz	≥20dB
	1000~2200MHz	≥18dB

Attenuation
Frequency (MHz)	Max. (dB/100m.)	Frequency (MHz)	Max. (dB/100m.)
5	2.82	400	16.72
55	6.72	450	17.70
83	8.03	500	18.69
187	11.80	550	19.51
211	12.46	600	20.33
250	13.44	750	22.85
300	14.59	865	24.66
350	15.74	1000	26.62

Packing Detial Packing detial
50m/100m in a Roll100m/200m/300m/500m Plastic Spool100m/200m/300m/500m/1000m Wooden SpoolCustomized packing are welcomed!
FAQ 1. What' s our main product?
TY dedicated to the developing, production, marketing of the Coaxial cable, Fiber Optic Cable. Indoor/ Outdoor Patch Cord, Communication cable, and so on.
2. Do you provide samples? Is it free or extra? Some of low value samples can be free for you, but you need pay for the express cost.3.
3. Can i negotiate the prices? Yes, we may consider discounts for multiple container load of mixed goods.
4. Can you produce according to the samples? Yes,we can produce by your samples or technical data.
5. How can i get your catalogue and price list? Please let us know your email or contact us from website directly for our catalogue and price list.
6. Do you provide OEM service? Yes, We supply OEM&ODM service.we can print your logo or label on the products or on the box.
7. Why choose us? Our company has more than 10 years experience of manufacturing of coaxial cable, optical communication units and doing network system integration system,we have our own production factory and stable raw material suppliers of many years cooperation. So our products have very stable quality and competitive price.
8. How much will the shipping charges be? It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.
9. Shipping& Delivery For large orders:by sea(LCL or FCL)
For small orders:by sea(LCL), by air or by courier services, any of which is optional.
10. I haven't bought anything from China. Can I buy it?
We cooperate with shipping companies. Our company has a professional transportation and delivery team. Our colleagues will help you and finally let you receive your goods smoothly.
If you can't find the products from our web, pls send the inquiry to us,even if we can't produce them ,we know china market very well ,so maybe we can tell you where you can buy the products you needed !
