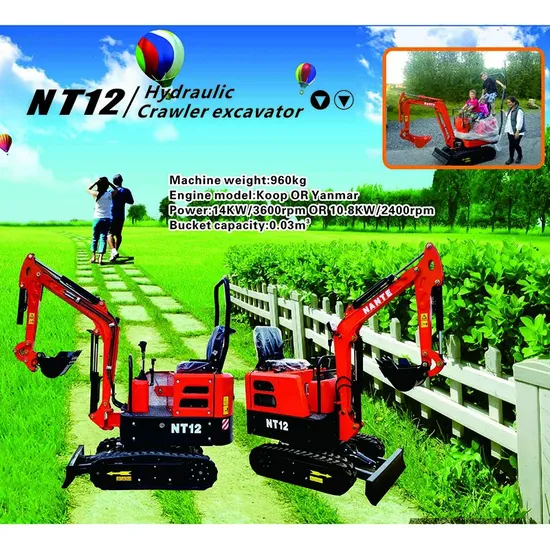

Made in China Good Price Family Bulldozer 0.96 Ton Small Excavator
| US$2,830.00-8,086.00 | 1 set (MOQ) |
Basic Info.
Model NO.
NT12
Usage
GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.03m³
Size
Small-Scale
Certification
CE
Condition
New
Approximate Weight
960(Kg)
Boom Length
1480mm
Engine Model
Koop Kd292f or Yanmar 3tnv74fsp
Power
14kw/3600rpmor10.8kw/2400rpm
Hydraulic System
19MPa
Swing Speed
14rpm
Travel Speed
0-2.5km/H
Bucket Digging Force
11kn
Arm Digging Force
9kn
Overall Length
2867mm
Overall Width
900mm
Overall Height
1570mm
Mini Ground Clearance
245mm
Ground Contact Length of Track
900mm
Track Width
180mm
Origin
China
HS Code
8429521200
Production Capacity
20000
Product Description
Product Description
| Boom length 1480mm | Overall width 900mm |
| Arm length 800mm | Overall height 1570mm |
| Max digging reach 2925mm | Overall Length 2867mm |
| Maxdigging depth 1325mm | Mini ground clearance.245mm |
| Max digging height 2685mm | Ground contactlength of track 900mm |
| Maxdumpingheight 2059mm | Track width 180mm |
| Mini swing radius1289mm | Bucket capacity 0.03m3 |
| Rear swing radius 820mm | Machine weight 960kg |
| Max vertical digging depth 973mm | Max ground digging.range 2827mm |
| Engine model Koop KD292F OR Yanmar 3TNV74FSP | Power 14kw/3600rpmOR10.8kw/2400rpm |
| Hydraulic system 19Mpa | Swing speed 14rpm |
| Travel Speed 0-2.5km/h | Bucket digging force 11KN |
| Arm digging force 9KN | Grade ability ≤30° |
