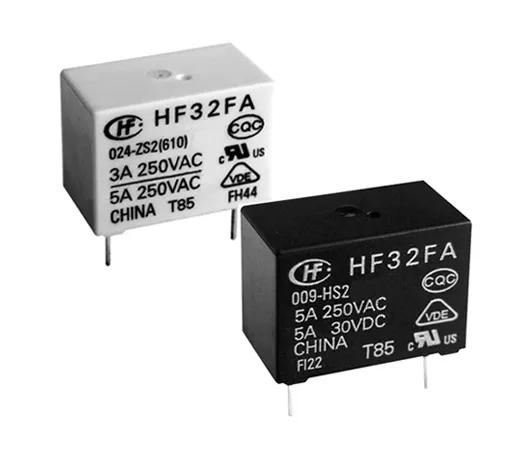

Subminiature Medium Power Relay Relay Output
| US$3.00-5.00 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
HF32F
Electricity Type
Dc
Load
High Power Relay
Size
Subminiature
Type
Electric Parameter Relay
Color
Write or Black
Bom
Support
Transport Package
Carton
Specification
18.4*10.2*15.3
Origin
China
HS Code
8536690000
Production Capacity
1000000PCS/Year
Product Description
| Type | HF32F |
| Coil voltage form | DC |
| Coil voltage | 48, 12, 9, 3, 6, 5, 24, 18 |
| Contact arrangement | 1 Form C, 1 Form A |
| Contact version | Single contact |
| Terminal type | PCB |
| Mounting | PCB-THT |
| Construction | Plastic sealed, Flux proofed |
| Coil power | Sensitive, Standard |
| Sort | Single side stable |
| Contact capacity | AgSnO2, AgCdO, AgNi |
| Insulation standard | Class B, Class F |
| Contact plating | Without plating |
| Packing method | Tube packing or Carton packing |
| Rated voltage(V) | 250V.a.c |
| Coil power | |
| Dielectric strength (between coil & contacts) (VAC 1min) | 2500VAC 1min |
| Operate time(ms) | ≤8 |
| Release time(ms) | ≤5 |
| Coil resistance(Ω) | |
| Creepage Distance(mm) | 3.2 |
| Electrical Distance(mm) | 3.1 |
| Insulation resistance(MΩ) | 1000 |
| Max. switching Current(AC) | 10 |
| Max. switching Current(DC) | 5 |
| Max. switching voltage(VAC) | 250VAC |
| Max. switching voltage(VDC) | 30VDC |
| Ambient temperature (max)(ºC) | -40 |
| Ambient temperature (min)(ºC) | 70 |
| Mechanical endurance min | 5000000 |
| Electrial eddurance min | 100000 |
| IEC60335-1 | YES |
| Product Description | Pusher Type Electromagnetic Relay |
| Application | appliances |
| Weight(g) | Aporox 6 |
| Volume(mm³) | 18.4×10.2×15.5 |
| Product approval | VDE,UL,CQC |
| File No. | VDE 40012204,UL E134517,CQC12002076528 |
Subminiature, standard PCB layout
Plastic sealed and flux proofed types available
UL insulation system: Class F
Product in accordance to IEC 60335-1 available
Type:HF32F
Coil voltage form:DC
Coil voltage:48, 12, 9, 3, 6, 5, 24, 18
Contact arrangement:1 Form C, 1 Form A
Contact version:Single contact
Terminal type:PCB
Our service; 1) All products are 100% electrically tested before shipment, ensuring optimum performance. 2) Samples are always available.(Your drawings or specification requirements are always welcome.) 3) Your any inquiry or question will be responded within 24 hours. 4) Good after-sales service 5) Short lead-time Each good performance can not be separated from these rigorous test.
