Sdm1200 Saddle Fusion Machine/Radius Bandsaw

Product Description

Advantage
1. Certificate:We provide CE and ISO certification and official test reports for each machine.
2. Guarrantee Period: 16-24 months free warranty,life Time Guarrantee.
3. Voltage: 220v or 380v is normal voltage, can customized 110v, 240v, 415v, 440v or according requirements.
4. Mode of transportation: Mostly by ship, less than 100kg, recommended by air or express.We can also cooperate with the shipping companies that they can help finish the custom clearance, even if you do not have import rights, you can buy.
5. Delivery time: 1~5sets: 2~3workdays; 6~10sets: 5~7workdays; Above10sets: 8~10workdays, by the way, we have stocks for many products, these products can usually be delivered within 24~48 hours.
6. Free Spare Parts: 1pc metal tool box, 1pc temperature sensor, 1pc screw driver, 1pc spanner, 2pcs blades, 2pcs fasten screws.
7. Electronic accessory:Electronic accessory of well-known brands will ensure the reliability of the machine. More importantly, if you need urgent repairs, you can buy these accessories faster in the local.
Application And Features
1. Suitable for fabricationg PE reducing tee in a workshop.
Integrated function of wdiding and taping enables to complete the whole fabricating process.
2. Removable PTFE coated heating mould.
3. Separate two-channel timer records times in soaking and colling phases.
4. Digital high-accurate pressure meter indicates clearer readings.
5. Linear guide ways are equipped with heating plate and dragging plate.
6. PLC control available for automatic process to ensure high welding standard.
7. Wide range of application to improve machine usage.
Specification

Model	SDM1200
Main Pipe Max. Dia	630 800 1000 1200mm
Branch Pipe Max.Dia	315 400 500 560mm
Heating Plant Max.Temp	270ºC
System Pressure Ranges	0-6Mpa
Working Voltage	380V 50Hz
Heating Plate Power	15-20KW
Hydraulic Unit Power	1.5KW
Drill Motor Power	1.5-3KW
Total Power	16.5KW
Weight	1900KG

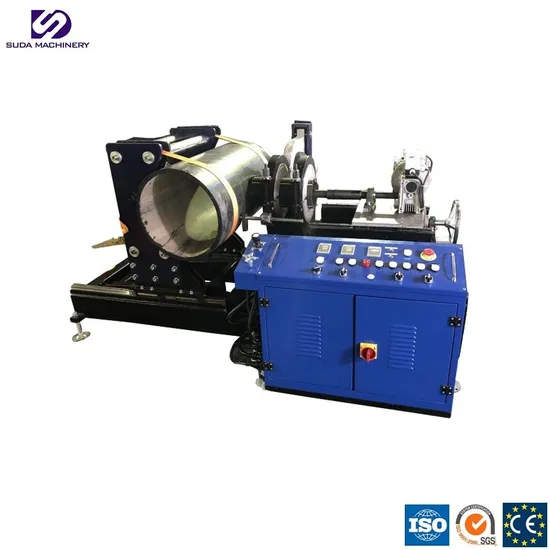

Machine Photos
Package delivery
Our Service 1.About sample: If you have any need, don't hesitate to contact us, we will promptly provide samples to you.
2.About after-sales service : Our products have one year warranty period , so if it has quality problems within one year , you can find our warranty .
3.We can customize product according to the requirements of customers.
4.Your inquiry related to our product or price will be replied in 24 hours.
5.Protection of your sales area, ideas of design and all your private information.
FAQ
1.why choose our factory ?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad
2.The advantage for product?
High efficiency , energy saving and good quality.
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary. The machine have one year warranty.
6. What payment is available?
T/T, L/C,Westion Union
