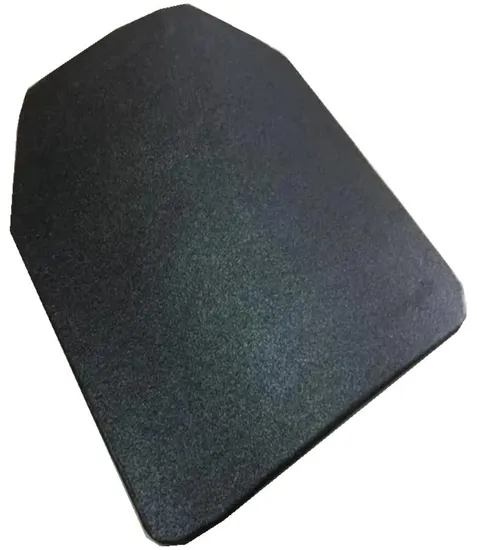

Factory Custom Supplies Insert Protective Plate Tactical Vest Personal Tactical Ceramic Plate Armor Plate

Product Description

Product Details

The pressureless sintered silicon carbide (SSiC) ceramic products are made of ultra-fine silicon carbide powder and sintered at high temperature. The silicon carbide content is more than 98% and without free silicon, yielding the product density more than or equal to 3.10g/cm3. What's more, our products have a great deal of technical advantages, such as high mechanical strength, high hardness, wear resistance, high temperature resistance, strong acid and alkali corrosion resistance, oxidation resistance, thermal shock resistance, good thermal conductivity, extreme cold and heat resistance and high temperature creep resistance. As a result, the products are widely used in many hign-tech fields, such as armour industry, aerospace, nuclear power, metal smelting, high-temperature furnace, lithium-ion battery production, powder metallurgy, ceramic chemical machinery, ultra-fine grinding, paper-making, medicine and so on.

Technical Data for Different Silicon Carbide Material Ceramic Product
Item	Unit	RBSIC	SSIC	RSIC
SIC Content	%	85	98	98.5
SI Content	%	15	0	0
HV Hardness HV0.5	/	2200	2500	/
Density	g/cm³	≥3.02	≥3.10	2.60-2.74
Max. Service Temp (air)	°C	1380	1650	1650
Open Porosity	%	<0.1	0	15
Bending Strength	Mpa	250 (20°C)	380	100
	Mpa	280 (1200°C)	370	120
Modulus of Elasticity	Gpa	330 (20°C)	350	240
	Gpa	300 (1200°C)	300	200
Thermal Conductivity	W/m.k	40 (1200°C)	35	10
Coefficient of Thermal Expansion	K-1×10-6	4.5	4.2	4.8
Acid Alkaline-proof	/	General	Excellent	Superior
Baotong Silicon Carbide New Material Co.,Ltd.

Third-Party Test Report

According to customer requirements, we can conduct factory internal testing and third-party testing on our products.

Product Package

We use foam pads and cartons or wooden boxes for packaging to ensure that the packaging is stable and firm, and avoid damage to the product during transportation.

Company Profile

Our company is committed to research, development, production and marketing of high-performance pressureless sintered silicon carbide ceramic products. It adopts a complete set of domestic advanced production lines, including dry pressure molding, normal pressure grouting, pressure grouting and extrusion molding. It has applied for six national patents, one utility model and five invention patents. It mainly produces pressureless sintered silicon carbide ceramic products, including pressureless sintered silicon carbide ceramic rollers, chemical heat exchange tubes, square beams, process furnace tubes, grinding media, thermocouple protection tubes, thermal radiation tubes, combustion nozzles, grinding barrels, multi curved armour breast plates, armour helmets, wear-resistant pipes, wear-resistant elbows, saggers, crucibles, plates, pump shells and other precision parts.

Workshop

Our Advantages• Competitive Price
• Many Specs Stock Goods
• 6000 tons / Month Stable Output
• 40+ Stable Partners fom All Over the World
• 11 Years Experience in Producing and Exporting
• Mature R&D & QC Teams to Ensure Good & Stable Quality

Customer Reception

Customers from Turkey visited our factory and negotiated business.

FAQ

Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: Are samples free or not?
A: Sample in stock can be free of charge. Only shipping needs to be paid by your side.
Q3. Can you customize according to my drawing or requirement?
A: Yes, we can customize, and we offer OEM and ODM service.
Q4. Do you test all your goods before delivery?
A: We have laboratories to test the chemical and physical properties of our SiC. We will repeatedly test during production and before shipping to ensure that the product meets the appointed standards. Looking forward to receiving your inquiry.
Please feel free to ask me if you have any questions. Thank you ^^
