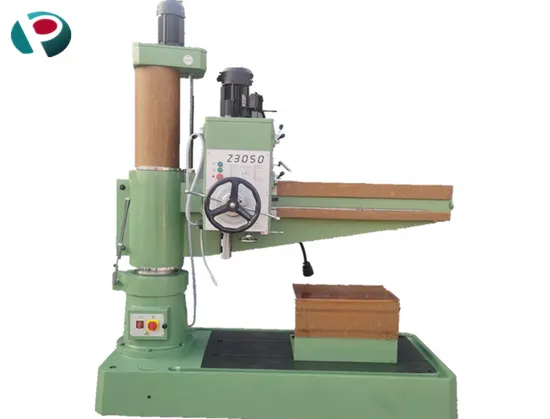

Hot Selling Factory Direct Sale Z3040/Z3050 High Speed Drilling Radial Drilling Machine

US$2,600.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z3040/Z3050

Structure

Radial Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Number of Shaft

Hole Diameter

Automatic Grade

Manual

Precision

Certification

GS, CE, ISO 9001

Condition

New

Rocker Arm Rotation Angle

360

Horizontal Moving Distance of Spindle Bo

1250mm

Spindle Feed

0.10/0.16/0.22/0.25/0.35/0.56

Maximum Allowable Resistance of The Spin

16000n

Main Motor Power

4kw

Lifting Motor Power

1.5kw

Machine Weight

2000kg

Overall Dimensions

2170*950*2450mm

Transport Package

Export Wooden Cases

Specification

2170*950*2450

Trademark

JEPPS

Origin

Shandong, China

Product Description

Product Description
Product Parameters

Main Parameters	Z3050×16 Radial Drilling Machine
Maximum Drilling Diameter (mm)	48/50 (steel/casting)
Distance from spindle centerline to column generatrix (minimum - maximum) (mm)	360-1600
Distance from spindle end to base table (minimum-maximum) (mm)	300-1150
Spindle travel (mm)	220
Spindle taper	MT.5
Spindle speed stages	6 Level
Spindle speed range (r/min)	78.135.240.350.590.1100

Detailed Photos
Company Profile
Certifications
Packaging & Shipping
FAQ
Q1. How can I get a quotation?
A. Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model . You can also send us the products drawing ,we will choose the most suitable machines for you .
Q2.What's your main products of your company?
A.We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q5. What's the delivery time, and what's the package?
A. Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
Q6. What is your trade terms?
A .FOB, CFR and CIF all acceptable.
Q7.What's the Payment Terms ?
A. T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
Q8.What's the MOQ?
A.1 set .(Only some low cost machines will be more than 1 set )
