High Rich Medium and Large Diesel Concrete Mixer Truck Cement Transport Truck

Product Description

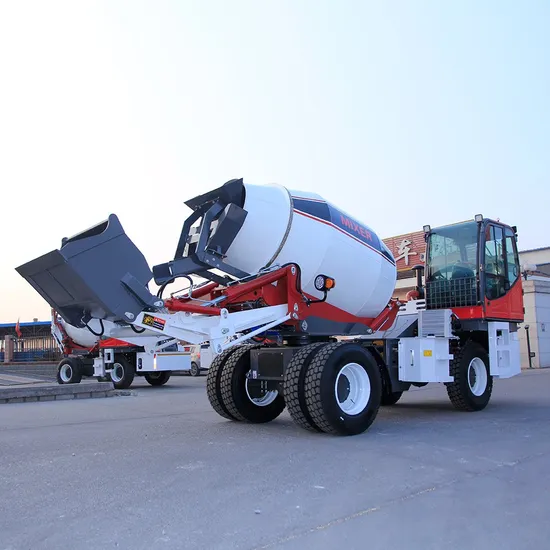

HIGH-RICH CONCRETE MIXER TRUCK
The 7th generation Simply upgraded the bucket down function from the loading mixer to truly realize the multi-purpose loading function of the machine. At the same time, the brake caliper increased the braking performance and equipped with high-pressure car washing to keep the equipment clean, and increased the water tank to increase the output... At this point, the 7th generation of products truly realizes the multi-purpose function of loading, stirring, transportation, car washing, etc.
Loader + Mixing truck + Transport truck = 1 Self loading Concrete Mixer Truck
1.Concrete mixer truck with automatic feed and water supply. The latest technology saves time and effort.
2.The mixer truck with full hydraulic torque converter.180°Rotary discharge.
3.Steel wire tyre,Vibrator and camera(Real-time attention Vision blind area).
4.Manganese steel material, quality assurance.

Overall Parameter
Model	HR5500L
Dimension (L×W×H)	6700*2640*4220mm
Weight	9500 kg
Performance
Mixing Drum Capacity	Drum Capacity 5500L,Concrete Output: 3.5m³ Per Batch
Production Speed	Production speed: 7tanks/h
Traveling Speed	Low Speed: 0-25km/hour / High Speed: 0-40km/hour
Drum Rotation	Horizontal rotation 270°
Transmission Type	4*4
Water Tank Capacity	1000L
Diesel Tank Capacity	200L
Hydraulic Oil Tank Capacity	200L
Gearbox	315 separated type
Drive axle	2.5T wheel side decelerationbridge
Tires	16/70-R22.5 double tires
Bucket capacity(m3)	0.65
Mixing capacity(m3)	≥3.3
Reduction ratio	1:28
Rotating speed(laps/minute)	≥ 15 laps/minute
Reducer	Made in China
Gradeabiliy	30°
Engine
Model	Yuchai 4108 supercharged
Manufacturer	YUCHAI
Rated Power	91kw
Emission standards	Euro II

Certifications

Packaging & Shipping
Company Profile

FAQ

FAQ
1.Are you manufacture or trading company?
We are a group company,include five middle-sized factory,one high technology developer company and a professional internation trade company. Supply from design - production - publicity - sell -after sell work all the line service team.
2.What's the main products?
Mainly support construction machinery,such as loader, skid loader,excavator,mixer,concrete pump,road roller,crane and etc.
3.How long is the warranty period?
Normally,products have one year guarantee period.
4.What is the MOQ?
One set.
5.What's the policy for the agents?
For agents,HIGHRICH supply the dealer price for their area , and help to do advertising in their area,some exhibitions in agent area also be supplied.Each year,service engineer will go to the agents company to help them tread the technical questions.
6.What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
