Dispatching Pulling Winch Hydraulic

Product Description

Dispatching Pulling Winch Hydraulic
Product Description
Hydraulic winches: A hydraulic winch is a mechanical device powered by hydraulic pressure to lift, pull, or drag heavy loads. It is commonly used in various industries such as construction, marine, forestry, and off-road applications. The primary components of a hydraulic winch include a hydraulic motor, a gear system, a drum or spool, and a braking system.

They use pressurized fluid to generate immense force and torque. This force is then used to drag, lift or push objects up to several tons in weight with minimal effort

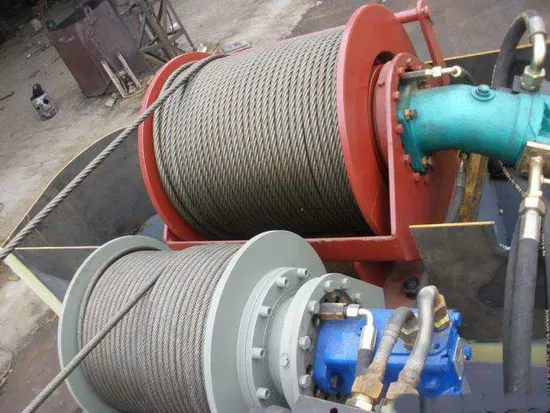

Detailed Photos
1.Compact size2.Low noise3.High start-up and working efficiency4.Easy installation, operation and maintenance5.Various models for wide applications6. Wide product range7.Free components for replacement within warranty period8.Professional and tailored solution for different requirements9.Free technical support at any time10.Customer training is available.
Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery Lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs,rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.
The st series wich consists of a variety of valves, hydraulic motors, multi-plate hydraulic brakes,planetary reducers,rolls,and racks composed of one-way or two-way balance valves and high-pressure shuttle valves for controlling hydraulic brakes.Users only need to be equipped with pumping stations and reversing valves.Since the winch has its own valve group, it not only simplifies the hydraulic system.but also improves the reliability of the transmission device. The ST type hydraulic winch runs smoothly,has low noise,and has the characteristics of high efficiency,low energy consumption,compact size,beautiful apperance.and good economy. Can be widely used in railway locomotives and automobile cranes,ships,oil field drilling and mining,coal mines,ports,small-scale construction machinery and other lifting traction equipment.
Product Parameters

Model			NE3/110	NE5/100	NE16/60	NE16/100
Flow Rating	L/min	120		120	120	120
	gpm	31.7		31.7	31.7	31.7
Pressure Rating	MPa	16.6		16.6	16.6	16.6
	psi	2400		2400	2400	2400
Max.Pull	kN	30		50	160	160
	US ton	3.3		5.5	17.6	17.6
Max.Line Speed	m/min	23		11	5.8	5.8
	ft/min	73		36	19	19
Wire Rope Diameter	mm	12.7		20.5	28	28
	in	1/2		3/4	13/32	13/32
Rope storage	m	110		100	60	100
	ft	360		328	197	328
Size	mm	810×490×500		880×520×710	1340×930×900	1520×930×900
	in	32×19×20		35×21×28	52.8×36.6×35.4	59.5×36.6×35.4
Weight	kg	490		490	1150	1250
	lb	1080		1080	2530	2750

Hydraulic winch product features:
1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.

Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory of hydraulic winch.
Q: How long is your delivery time? A: Generally it is 5-25 days if the goods is the standard dimension.
Q: Can you custom make the product? A: Yes, all dimensions and specifications of hydraulic winch can be designed and made based on your requirements.
Q: How to order? A: To make sure the offered hydraulic winch is suitable for your application, please offer the following details:
1. pull force of inner layer (kg):
2. rope speed of inner layer (m/min):
3. rope diameter (mm):
4. length of rope (m):
5. drum diameter (mm):
6. with or without groove:
7. with or without brake:
If you have another question about the hydraulic winch, pls feel free to contact us.
