High Temperature 180 Degree Heat Resistant Rubber Conveyor Belts

Product Description

Product Description
heat resistant rubber conveyor belt it is suitable for use when the ambient temperature or the temperature of the materials being transported is 60°C or above.
usually normal conveyor belt works perfectly well up to 60 ° C, but heat resistant belt can transport hot material which over 60 °C

we have three kinds

T1-MEDIUM HEAT Resistance 150 ° C (maximum 180 ° C)

T2-HEAT Resistance 180°C (peak 200 ° C)

T3-ULTRA HUGH HEAT resistance 200 ° C (peak up to 400 ° C) for steady application temperatures.

Applications
Steel mills (sintered ore, coke, pellets, tailings, etc.)
Cement plant (clinker, cement products, raw materials for blending, dried clay, etc.)
Other (casting sand, etc.)


Product Parameters Details:
belt thickness: 3+1.5,4+2, 5+2, 6+2, 8+3, 3+0 etc
Belt width: 400-2600mm
belt length: 50-400m
tensile strength: 8-25mpa
Application: stone, cement plant, coal mine, copper mine
Edge: moulded edge or cut edge

The common ep conveyor belt type could be:
2-ply belts: 315/2 400/2 500/2 630/2 800/2
3-ply belts: 500/3 630/3 800/3 1000/3 1250/3
4-ply belts: 630/4 800/4 1000/4 1250/4 1600/4
5-ply belts: 800/5 1000/5 1250/5 1600/5 2000/5

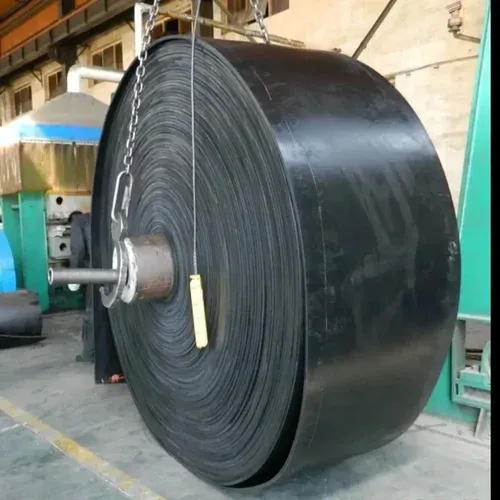

Detailed Photos

Quality control we have several professional quality inspectors to make sure all the belts meet customer's requirement before shipping goods.
before production
we will check to use correct raw material to make belt before manufacturing
during production
we will check production line to avoid any thing dropped on the belt
after production
we will check the thickness&width&length of each belt to ensure enough size, after that, then we will check the belt tensile strength, break resistance, abrasion loss, adhesion.
Packaging & Shipping packing: we usually use pp bag for plain belt, and metal rack for chevron belt and sidewall belt.
delivery: 2 weeks after getting your prepayment
Other type conveyor belt we can make these kinds of rubber conveyor belts as below.
chevron conveyor belt
we have shape close V, open V, close Y, open Y, close U, open U, Multi V etc
height can be C6, C10, C15, C17, C20, C25

sidewall conveyor belt
steel cord conveyor belt
rough top conveyor belt
pipe conveyor belt
Installation Instructions our belt is widely used in minning industry, construction industry, life , agriculture field, etc
mining industry like transport copper ore, stone, coal.
construction industry like transport gravel, sand, cement, wood, concrete.
agriculture field like transport fertilizer, crops
life area like transport life garbage,airport parcel.

Related other product we make we also have below products can make
rubber sheet SBR/NBR/CR/EPDM
pulley lagging sheet
coin rubber mat/diamond rubber mat/checker rubber mat
latex rubber sheet
