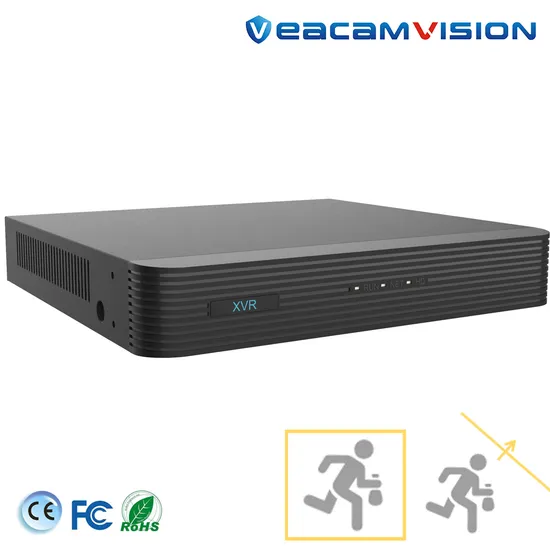

8CH Xvr Onvif CCTV DVR Hybrid Recorder 2mn 5in1 Xvr for Ahd Camera Analog Tvi Cvi Camera NVR for IP Cmaera

Product Description

Product Description
8CH XVR Onvif CCTV DVR Hybrid Recorder 2MN 5IN1 XVR for AHD Camera Analog TVI CVI Camera NVR For IP Camera Key Features Support H.265/H.264 video formats Support audio over coaxial cable Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access 8-channel BNC input Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080 Long transmission distance over coax cable Product Parameters

Model	VCXVR-804UA1S
Video/Audio Input
Analog Video Input	8-ch, BNC
IP Video Input	2-ch(only IP up to 6ch), each channel up to 4MP
Supported Analog Camera Types	Support AHD input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support TVI input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 5MP@12fps 4MP@15fps 1080P@30fps 720P@60fps Support CVI input: 5MP@20fps(The first channel) 4MP@30fps(The first channel) 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input
Audio Input	1-ch, RCA
Two-way Audio	1-ch, RCA
Network
Incoming Bandwidth	40Mbps (Up to 48Mbps after all analog channel conversion)
Outgoing Bandwidth	60Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP
Video/Audio Output
VGA Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
HDMI Output	1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1-ch, RCA
Synchronous Playback	4-ch
Encoding
Recording Resolution	5MP Lite/4MP Lite/1080P/720P/CIF
Recording Frame Rate	Main stream:	Sub stream:
	5MP Lite@12fps	D1@12fps
	4MP Lite@15fps	D1@15fps
	2MP@15fps	D1@15fps
	720P@30fps	D1@30fps
Hard Disk
SATA	1 SATA interface
Capacity	Up to 6TB for each HDD
External Interface
Network Interface	1RJ45 10M/100M self-adaptive Ethernet Interface
USB Interface	Rear panel:2 x USB2.0
General
Power Supply	12V DC Power Consumption: ≤ 8 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)	260mm × 243mm × 46mm (10.2" × 9.6" × 1.8")
Weight ( without HDD )	≤1.1 Kg ( 2.42lb )

Detailed Photos

Company Profile
Certifications
Our Advantages

FAQ
High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic
High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic Introducing our High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic, brought to you by Veacam Electronics Co., Ltd. This state-of-the-art surveillance camera is designed to provide you with exceptional security and peace of mind.
With its high definition capabilities, this camera delivers crystal clear images and videos, allowing you to capture every detail with precision. The True WDR technology ensures optimal image quality even in challenging lighting conditions, providing you with accurate and reliable surveillance footage.
Equipped with advanced human detection technology, this camera can intelligently identify human movements, minimizing false alarms and ensuring that you are alerted only when necessary. The built-in microphone allows for clear audio recording, enhancing the overall surveillance experience.
Designed for outdoor use, this camera is waterproof and weatherproof, making it suitable for any environment. Its durable construction ensures long-lasting performance, even in harsh conditions. The IP67 rating guarantees protection against dust and water, ensuring reliable operation at all times.
With its easy installation and flexible connectivity options, this camera can be seamlessly integrated into your existing security system. Whether you prefer DHL/UPS/Fedex or other air and sea shipments, we can accommodate your shipping preferences.
At Veacam Electronics Co., Ltd, we prioritize customer satisfaction. We offer various payment methods, including T/T, LC, Western Union, and Trade Assurance, to ensure a convenient and secure transaction process.
Customization is also available. You can print your logo on the product, making it uniquely yours. Depending on your requirements, we can adjust the minimum order quantity to suit your needs. We even support small test orders for all customers.
If you would like to experience the quality of our product firsthand, we offer samples for a fee. Rest assured, the sample fee will be refunded in your later order.
Don't miss out on the opportunity to enhance your security system with our High Definition 5MP True WDR Network Camera with Human Detection and Built-in Mic. Contact us now for more details and let us help you achieve unparalleled surveillance.
