Automatic Door Home Elevator Traction Residential Lift with High Quality

Product Description

Automatic Door Home Elevator Traction Residential Lift with High Quality
Traction Lift Description Traction lifts are a simple system. A motor is attached to a sheave (a toothed pulley), with a rope or cable looped over it. The rope is attached at one end to the lift car, and on the other end to a counterweight.
When the lift is called to a floor, the motor turns the sheave. This motor can move in both directions - one moving the lift car up, the other moving it down.
As the lift car rises, the counterweight lowers - and vice versa. The counterweight means there is less strain on the motor and the whole system, meaning that less power is required to move the lift car up or down. This is similar to a see-saw - if there is only one person on the see-saw it takes far more energy to get to the top, whereas the balance between two people make it easier.
Advantages:
1. Energy Efficiency: Traction lifts consume less power, especially in taller buildings, due to the counterweight system.
2. Smooth Ride: Traction elevators provide a smoother ride with gradual acceleration and deceleration.
3. Higher Speed: Capable of faster movement compared to hydraulic lifts, making them ideal for tall buildings.
4. Greater Capacity and Height: Can handle more weight and travel longer distances, serving multiple stories easily.
Disadvantages:
1. Higher Cost: Installation and maintenance of traction lifts can be expensive due to their complex machinery.
2. Space Requirements: They typically need a machine room for the motor and pulley system, which can be a limitation in space-constrained homes.
Traction Lift Parameter

Model	VPL
Load capacity	400kg
Car size	Max 1200x1300mm
Stop	2-6 stops
Travel height	Up to 6 floors level(Net rise within 16m, total height within 20m)
Top level height	Not less than 2850mm
Rated speed	Max 0.4m/s
Power supply	220V 2phase or 380V 3-phase, 50/60hz
Car Wall	Materials in Stainless steel 304 or tempered glass or wood
Car Door	Electric Double-opening Door
Landing door	Electric Double-opening Door, Electric Single-opening Door
Pit	More than150mm deep

Four Style Traction Home Lift1. Outdoor traction home lift: Outdoor traction home lift use heavy structure shaft. Shaft glass is 5+0.75+5mm double layer glass.
2. Traction Home lift in concrete shaft: XYZLlFT supply home lift and landing door.

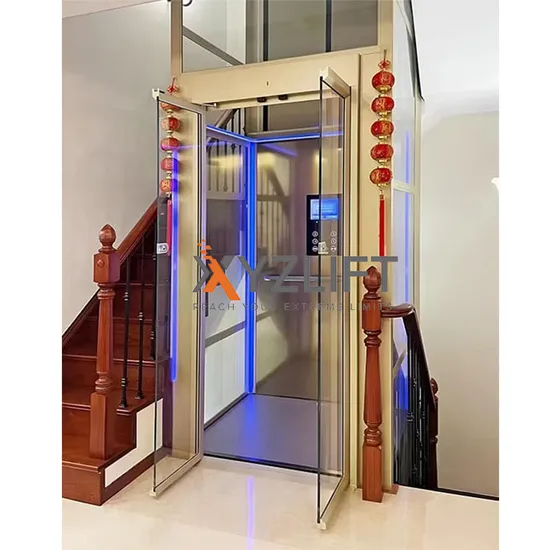

3. Traction Home lift with glass shaft: Traction Home lift with glass shaft, Home lift size is designed according to installation area
4. Traction Home lift only: Thins kind home lift is suitable for limited traction home lift installation area.
Traction Home Lift Safety

No.	Main Safety Devices	No.	Main Safety Devices
1	In-car Emergency Lighting	9	Safety Circuit Protection
2	Full Load Bypass	10	Limit Protection
3	Overload No-Start	11	Upper and Lower Limit Protection Device
4	Automatic Fault Detection Function	12	Operating Contactor Protection
5	One-touch Call	13	Brake Detection Protection
6	Pit Buffer Device	14	Electric Brake Release Rescue
7	Light Curtain Door Protection Device	15	Power Outage Emergency Leveling
8	No Door Opening Outside Door Zone	16	One-touch Dialing Function

Traction Lift Project ShowDesign Your Traction LiftXYZLIFT Traction lift suitable different installation site, customized according to your actual situation.
Landing door OptionalOur landing doors can be customized with the following 4 opening methods according to your needs:
Shaft color,control panel Optional
Car design,ceiling, floor Optional
XYZLIFT Traction Home Elevator Car Design
1.Traction Home elevator cabin walls are available in either stainless steel, glass or wood.
2.Stainless steel color options include original, black, rose gold, gold, and white.
3.Glass colors can be chosen from clear, black, blue, and frosted glass.
4.Stainless steel thickness options are 0.5mm, 0.8mm, and 1.2mm.
5.Combination of engineered wood panels with aerospace-grade aluminum, featuring mirrored stainless steel on both sides and high-quality LED light strips.
6.Glass thickness choices include 5mm, 8mm, or 5+5mm double-layered glass.
Traction Home Elevator Ceiling & Floor
1.The elevator cabin ceiling style is customized based on client preferences.
2.The cabin's standard flooring is PVC, but there's an option for clients to choose wooden flooring or ceramic tiles.
3.Thousands of styles available for ceilings & floors for choose.

Packaging & Shipping
All parts of the home lift are packaged in seaworthy standard plywood boxes, lined with moisture-proof and waterproof plastic bags.
Each part is labeled with an identification tag, and each packaging box includes a packing list.
Generally, one 2-floor home lift is packaged in 4 plywood packages.
The motor and all parts are in Package 1: 2770x1340x1570mm;
The guardrail frame is in Package 2: 2330x1210x840mm;
The guide rail and cylinder are in Package 3: 3230x370x280mm;
The shaft frame is in Package 4: 3000x750x750mm. Total: 1450kg, 4 packages.
