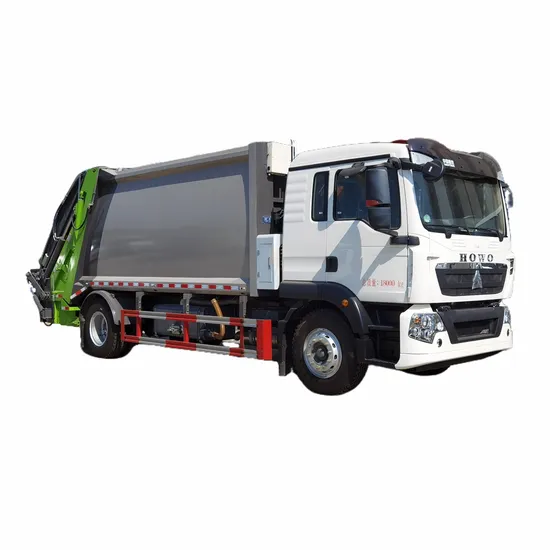

Sinotruk HOWO Tx 18000L Compressed Garbage Truck

Product Description

Product Description Introduction to Compressed Garbage Trucks
Compressed garbage truck is a vehicle specifically designed for compressing and transporting garbage, mainly used for urban sanitation operations, aiming to improve the efficiency of garbage treatment and reduce space occupation during transportation. Its design has three functions of garbage compression, storage, and transportation, which can load more garbage in the same volume, reducing transportation frequency and operating costs. Detailed Photos
Product Show
Product Parameters
Product parameters

	Overall Dimensions	mm	8900*2500*3300
	GVW	kg	18000approximate
	Curb Weight		10420approximate
	Rated Load		7450pproximate
	Front/Rear Hanging	mm	1340/2510
	Approach/Departure Angle	°	21/14
	Leaf Spring	pcs	10/9+6
	Front/Rear Axle	ton	4.8t/10t
	Drive Wheel		4*2
	Chassis Model		ZZ1180
	Manufacturer		SINOTRUK Group Co., Ltd
	Wheel Base	mm	4500
	Tire Specification	inch	10.00R20
	No. of Tires	pcs	6+1 spare
Engine	Engine Type		WP6.210E32
	Manufacturer		Weichai power Co.,Ltd.
	Engine Horsepower	hp	210
	Displacement	ml	6230
	Number of cylinders		6
	Cylinder bore	mm	105
	Stroke	mm	120
	Emission Standard		Euro VI
Gear box	Type		8JS85TM
	No. of Gears		8forward gears & 2reverse
Cab	passengers		2
	steering wheel		LHD
	ROW		One and a half rows
Fuel tank	Capacity	L	200L
Equipment	Garbage bin volume:18000L
	The maximum garbage capacity of the rear garbage loading hopper is 2 cubic meters
	Hydraulic system control: manual control
	Garbage loading method: rear hanging bucket flip frame (hanging 240-liter garbage bin) or large floor hopper
	Sewage tank capacity: 300L
	Material of garbage bin: Adopting high-strength manganese steel plate arc-shaped box body
	Thickness of garbage bin:Bottom plate:5mm;side plate: 5mm; top plate:5mm
	Body exterior color: customizable according to customer requirements

ParProduct Paramenters
Analysis diagram of compressed garbage truck
Certifications
Packaging & Shipping
FAQ Q1.What about quality ?
Our trucks are brand new truck,the chassis and spare parts come from the original manufacturers,Our trucks have passed ISO, 3C, BV, ASME and other relevant certifications.
Q2.Is there any advantages of your price?
Our company is one of the most important suppliers of Sinotruk, JAC,Shacman,Foton,Dongfeng, JMC,and FAW, which provides guarantees for reasonable price and good quality.
Q3.What about your service ?
(1)we can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
(2)free consultation forever. When you meet small problems, professional advices can help you to solve them soon.
(3)One year free cost warranty.
(4)Spare parts forever. When you need spare parts, we can send them to you immediately.
Q4.If you have no certificate for exporting trucks to our country , what should we do?
There are some regions and countries we can not export completed truck but we can make body according to your requirements and send to you , you install it on your own chassis and sell completed truck .this can help you to save cost and increase competitiveness.
Q5.What is the warranty period for your products?
A:The warranty period of export vehicles is 12 months from the date of production, and some parts are 4 to 10 months.During this
period, if any manufacturing defects occur, we will provide free repair or replacement services. Paid maintenance services shall
be provided outside the guarantee period.
Q6.What is your terms of payment?
A: T/T 30-50% as deposit, and the rest before delivery. We'll show you the photos of the products and packages before you pay the
balance.
Q7.How can i visit there?
Welcome to the factory for inspection. You can fly to Wuhan Tianhe Airport, and our company will arrange a special car to pick you up. Rear Loading Export C
