China Vertical/Horizontal Universal Milling Zx6350zs Drilling and Milling Machine Price List
| US$5,800.00 | 1 set (MOQ) |
Basic Info.
Model NO.
ZX6350ZS
Type
Universal
Object
Metal
Structure
Knee Type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Inlaid Tooth
Controlling Mode
Program Control
Automatic Grade
Semiautomatic
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Name
Universal Milling Machine
Table Size
1270X320mm
Table Travel
750X270X380mm
Spindle Taper
Is040
Table Load
250kg
T Slot
3X14X70
Max Drilling Dia
30mm
Max. Vertical Milling Dia
25mm
Longitudinal/Cross Feed
30-720mm/Min
Horizontal Speed
60-1350rpm
Vertical Speed
90-2000
Main Motor
2.2kw
Feed Motor
1.1kw
Vertical Feed
15-360mm/Min
Transport Package
Ply Wooden Case
Trademark
uni-tech
Origin
China
HS Code
84595900
Production Capacity
100sets/Month
Product Description
China Vertical/Horizontal Universal Milling zx6350ZS Drilling And Milling Machine Price List FEATUREUniversal milling machine feature:
1. all 3 axes with automatic feed and rapid feeds
2. vertical head swivels ± 45°
3. spindle speeds for horizontal and vertical spindle controlled by separate switch gears with oil-bath lubrication
4. capstan-controlled quill feed for drilling, manual micro-feed for milling
3 automatic quill feeds
5. for horizontal spindle operations, the top beam including head can be completely rotated on the stand
6. adjustable ground dovetail guideways on the X-axis and wide square guideways on Y
7. clamping device in all 3 axes
8. adjustable stops for drilling depth and table adjustment
9.worktable swivel +-45 standard.
SPECIFICATIONS
Universal machine specification:
| Model | unit | ZX6350ZS |
| TABLE | ||
| Table size | mm | 1270×320 |
| T slot | no | 3 |
| T Size ( Width ) | mm | 14 |
| T Centre distance | mm | 70 |
| Max. load of Table | kg | 250 |
| machining range | ||
| table Longitudinal travel(manual/auto) | mm | 750 |
| table Cross travel (manual/auto) | mm | 270 |
| table Vertical travel(manual/auto) | mm | 380 |
| MAIN SPINDLE | ||
| Spindle taper | ISO40 | |
| spindle speed /step -- Vertical | rpm | 90-2000/8 |
| --Horizontal | rpm | 60-1350/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | 16 |
| quill travel | mm | 120 |
| swivel angle of headstock | degree | ±45º |
| vertical spindle axis to column surface | mm | 220-560 |
| vertical spindle nose to table surface | mm | 120-500 |
| horizontal spindle axis to table surface | mm | 0-380 |
| horizontal spindle axis to arm bottom | mm | 215 |
| ram travel | mm | 400 |
| FEEDS | ||
| Longitudinal/cross feed | mm / min | 30-720 |
| Vertical | mm/min | 15-360 |
| Longitudinal/cross rapid speed | mm / min | 1070 |
| Rapid Traverse vertical | mm/min | 535 |
| automatic spindle feed | 0.08/0.15/0.25 | |
| POWER | ||
| main motor | kw | 2.2(V/H) |
| feed motor | kw | 1.1 |
| coolant motor | kw | 0.09 |
| others | ||
| package dimension | cm | 170x165x225cm 1pc/case |
| overall dimension | mm | 1680×1640×2200 |
| N/W,G/W | kg | 1650/1850 |
ACCESSORIES
Universal milling machine accessories:
Standard Accessories:
1.Drill chuck Φ16
2.Inner hexagonal spanner 5
3.Wedge shifter
4.Reduction sleeve ISO40/MT3,ISO40/MT2
5.Wrench S21-24
6.Spindle arbor
7.Milling chuck Φ4-Φ16
8.Horizontal milling arbor Φ22, Φ27
9.Draw bar
Optional Accessories:
1.DRO
2.Clamping kit
3.Rotary worktable
4.Universal dividing Head
5.Machine vice
6.CE
7.New Operation Panel
8.Hanging Operation panel
Detailed Photos

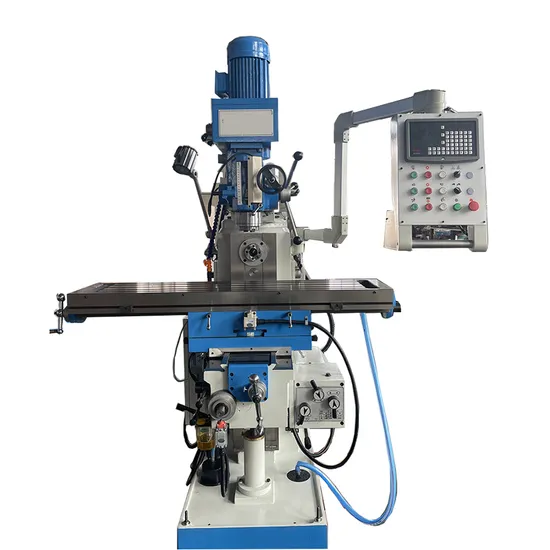

universal milling machine more photos:
If you are interested in Universal milling machine , pls contact us
TENGZHOU UNI-TECH CO.,LTD
Contact person : kitty xu
