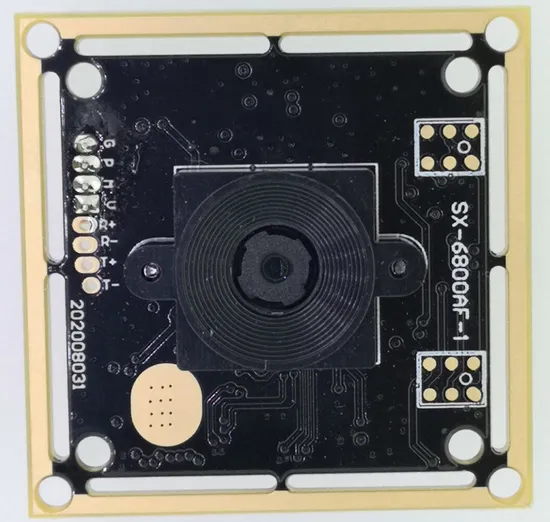

8MP Af 4K Camera USB Camera Module with Sony Imx179 CMOS Sensor
| US$45.00-50.00 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
SX-6800AF
Compressed Format
MPEG
Operating System
Windows, Linux, Android
Application
Document Scanner
Interface Type
USB
Audio Input/Output
2 Channel
Remote Control
With Remote Control
Product Name
Af USB Camera Module
Model Number
Sx-6800af
Output Format
Mjpg/Yuy
Max Resolution
8.0 Megapixels
Lens
Auto Focus
Dimension
38*38mm/32*32mm
Transport Package
Paper Box
Specification
260*43*220mm
Trademark
SHIXIN or OEM
Origin
Shenzhen
HS Code
8525891900
Production Capacity
10, 000 PCS/Year
Product Description
Sony IMX 179 High Definition 8.0MP USB Camera with Auto Focus used for Portable Scanner, Medical equipment... Features:-- USB2.0/3.0 High Speed Interface
-- 8MP high resolution, suitable for document capture
-- Advanced Sony image sensor
-- Can match with different angle of Lens
Specifications:
| Module NO. | SX-6800AF |
| Module Size | 38*38mm / 32*32mm |
| Resolution | 3264(H)*2448(V) / 8Megapixel |
| Image Sensor | 1/3.2 inch Sony IMX179 |
| Mini illumination | 0.5Lux |
| Pixel Size | 1.4um |
| Focus | Auto |
| Frame Rate | 15 fps for 3264*2448 15 fps for 2592*1944 30fps for 1920*1080 |
| PCB printing ink | BLACK |
| Video Output | USB 3.0 |
| Power | USB BUS power |
| Power consumption | 1.8W |
| Operating system request | Win 2000,Win XP,Win 7,Win 8 |
| Assembly technique | SMT (ROSH) |
| S/N Ratio | 34dB |
| Dynamic Range | 72.5dB |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUV/MJPG |
| F/No | 3.85mm |
| Temperature (Stable Image) | 0°C to 50°C |
| Temperature (Operation) | 0°C to 50°C |
