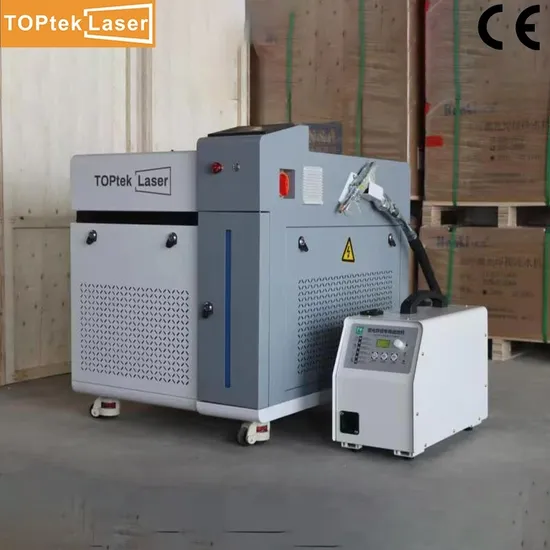

OEM Custom 1500W Laser Power Handheld CNC Laser Welding Machine

Product Description

Product Description
4 IN 1 HANDHELD LASER WELDING MACHINE
The laser welding process is to melt the connecting area with a very high-energy and dense beam with a large amount of heat. The single-module optical fiber laser source provides consistent and stable power and a high-quality laser beam.
Fiber laser welding machine is an advanced welding technology that is a perfect replacement for traditional electric welding, MIG, and CO2 welding.
* China's First TUV certified laser welder company
* 70-80% cost-*saving in practical production.
* 5 times faster and more intelligent.
* Top assembly standard, German standard.
High-Power Precision Welding: Our TOPTEK Laser 1500w handheld fiber laser welding machine is designed for precision welding, offering a maximum output power of 1500w and a weldable thickness of 0-4mm. This makes it suitable for various industries, including manufacturing, construction, and food & beverage.
Easy to Operate: This machine is user-friendly and easy to operate, allowing users of all skill levels to achieve professional-grade results. Its intuitive control system and compact design make it an ideal choice for both beginners and experienced professionals.
Versatile Welding Capabilities: The TOPTEK Laser 1500w can weld a variety of materials, including stainless steel, galvanized sheet, aluminum alloy, brass, and more. This makes it a valuable asset for industries that require flexibility in their welding needs.
Service Before / After-sale
1. Make technical solutions as per customers' real application,
2. Discuss all the benefits, costs, and risks with customers,
3. Engineer online support within 30 minutes,
4. Engineer support on-site,
5. Upgrade customers' technical capacity,
Product Parameters

4 IN 1 HANDHELD LASER WELDING MACHINE SPECIFICATION
NO.	Item	LW-1500
1	Laser Power	1500W
2	Laser Wavelength	1070 NM
3	Fiber Cable Length	10 Meters
4	Cooling Method	Water
5	Positioning Method	Red Laser Dot
6	Welding Speed	0-200mm/S
7	Voltage	220V 50/60 HZ
8	Power Consumption	7KW
9	Air Pressure	10-15L/Min
10	Currency	30A
11	Welding Thickness	0-4mm
12	Laser Gun	Motor Wobble
13	Focus Length	150mm
14	Cryogenic Water Flow	13L/Min
15	Chiller'S Water	Purified Water Or Deionized Water
16	Protective Gas	Argon Gas Could Meet Most Of The Requirement
17	Welding Wire Diameter	0.8/1.0/1.2/1.6mm

1500W WELDING PARAMETERS
Material	Laser Power-%	Speed-mm/s	Gas Pressure-L/min	Wobble diameter -mm	Wobble Frequency-HZ
1.0 SS/CS	50--60	60--95	10	0.8--2.0	80--100
1.5 SS/CS	60--75	50--85	15	1.0--2.6	80--100
2.0 SS/CS	75--95	45--65	15	1.4--2.8	60--80
3.0 SS/CS	85--95	35--45	15	1.2--2.8	60--80
4.0 SS/CS	95--98	30--40	15	1.2--2.8	60--80
2.0 AL/Cu	85--95	45--60	10	0.6 -2.2	60--80

COMPARISON BETWEEN PORTABLE LASER WELDING AND OTHER WELDING
No.	Items	Laser welding machine	Other welding
1	Working speed	5-10 times faster	Slow
2	Operator	No need experience,1 hour training is enough	Must be experienced
3	Operation safety	Guaranteed	No guarantee
4	Welding seam	Almost invisible	Big seam
5	Welding surface	Very smooth	Rough and scars
6	Post processing	No need polishing	Polishing
7	Thermal deformation	Very small	Big
8	Working enviroment	Environmental friendly	Much harmful gas,slag,light and heat
9	Welding firmness	Equal or more than base metal	Less than base metal
10	Welding precision	Spot/seal/angle/stitch/arc welding for precision parts	Ok for flat surface
11	Multi-function	Laser cutting,welding and cleaning workable	No
12	Wobbing welding	Automatic	No
13	Total cost	70% less	Labor cost,gas and consumables

Detailed Photos
WORLD WELL-KNOWN LASER SOURCES
MAX is currently the largest manufacturer of fiber laser sources in the world. Now we chose the latest generation fiber source, protected against beam reflection.
The latest model of the resonator achieves ultra-high power output, which translates into optimal performance and excellent weld quality. The photovoltaic conversion efficiency is more than 30%.
SWISS RAYTOOLS AUTO-WOBBLE HEAD
The wobble welding joint is independently developed, with wobble welding mode, adjustable spot width, and strong welding fault tolerance, which makes up for the disadvantage of a small laser welding spot, expands the tolerance range and weld width of machined parts, and obtains better weld line forming.
The weight of the welding head is only 0.8 kg.
HANLI INDUSTRIAL CHILLER
1) Professional matching laser welding machine, small size, compatible with cabinets of various manufacturers;
2) A full range of environmentally friendly refrigerant systems;
3) One-button intelligent control, convenient operation, ISO9001 quality management system, fault code query system;
4) Integrated design, convenient maintenance;
5) Stable and reliable performance, low failure rate, energy saving and power saving;
INTELLIGENT HMI OPERATING SYSTEM
1. Independent research and development of control system, set up more than a security alert, smaller flexible operation, use simple.
2. More stable: all the parameters can be seen, real-time monitoring machine condition, avoid problems ahead of time, more convenient and solve problems, to ensure stable welding head work.
3. Process: all the parameters can be seen, the welding quality is perfect, small deformation, high penetration
4. The parameter is stable, and high repeatability: determine the state of nozzle air pressure and lenses, as long as the laser power is stable, process parameters can be surely heavy summer, Greatly improving the efficiency.
AUTOMATIC WIRE FEEDER
Equipped with an Automatic Wire Feeder, Perfect Choice for seam welding.
The system is controlled by a microcomputer and driven by a stepping reducer motor, with high precision and continuous stability.
