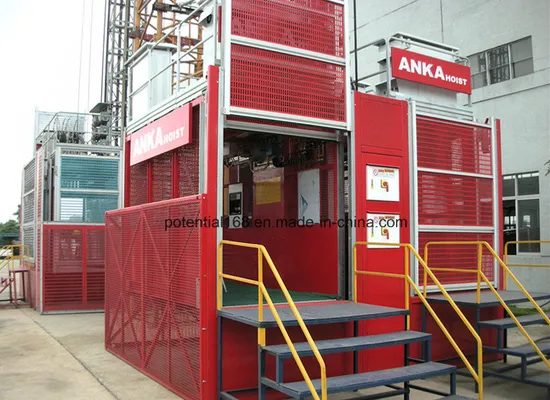

Anka Construction Passenger Hoist in Rack and Gear Hoist for Lifting Passenger
| US$23,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SC200GD
Usage
Construction Hoist
Lift Drive / Actuation
Electric Motor
Attendant
with Attendant
Deceleration Device
with Deceleration Device
Elevator Door
Sider Door
Type
Construction Hoist
Sling Type
Rack and Pinion
Lift Mechanism
Rack and Pinion
Application
Construction Usage
Tower Crane Type
Mast Section
Main Girder Form
Single Girder
Power Source
Electric
Moving Type
Rack and Pinion
Transport Package
Naked and Container
Specification
CE
Trademark
ANKA
Origin
China
HS Code
8428
Production Capacity
300 Per Year
Product Description
SC200GD Construction Passenger HoistCapacity: 2000KG
Speed: 40M/MIN
Car dimension: 3.2*1.5*2.2M L*W*H)
Galvanized mast section: 650*650*1508mm
Maximum height: 350m
Optional of car dimension: 2.0 *1.3*2.2m, 2.5*1.5*2.2m and customerized dimension.
| Model | Capacity (kg) | Lifting speed (m/min) | Motor power (kw) | Inverter power (kw) |
| SC200TD | 2000 | 36 | 3 x 11 | N |
| SC200GD | 2000 | 0-40 | 3 X 11 | 37 |
| SC200GZ | 2000 | 0-63 | 3x18.5 | 55 |
| SC270GZ | 2700 | 0-63 | 3x18.5 | 75 |
| SC200G | 2000 | 0-96 | 3x22 | 90 |
| SC270GS | 2700 | 0-96 | 3x30 | 110 |
| SC120/120GZ | 2x1200 | 0-63 | 2x3x15 | 2x45 |
| SC200/200GZ | 2x2000 | 0-63 | 2x3x18.5 | 2x55 |
| SC270/270GZ | 2x2700 | 0-63 | 2x3x18.5 | 2x75 |
| SC200/200G | 2x2000 | 0-96 | 2x3x22 | 2x90 |
| SC270/270GS | 2x2700 | 0-96 | 2x3x30 | 2x110 |
| SCD270/270G | 2x2700 | 0-96 | 2x3x18.5 | 2x55 |
| SCD320/320G | 2x3200 | 0-96 | 2x3x22 | 2x75 |
