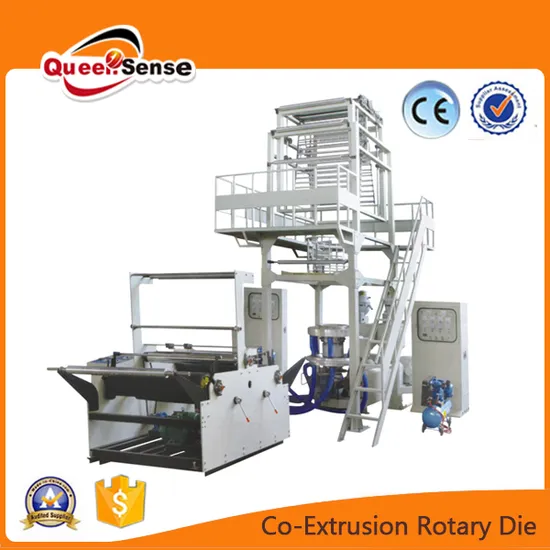

Double Layer Coextrusion PE Blown Film Line
| US$20,000.00-28,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QS-2G50/55/60/65
Maximum Folding Width of Film
2000mm
Screw Diameter
65mm
Automation
Automatic
Computerized
Computerized
Machine Weight
4T
Certification
CE, ISO9001:2008, QS
Film Thickness
0.028-0.2mm
Max.Extrusion Output
180kg/H
Driving Motor
18.5-30kw
Winding Speed
5-50m/Min
Size
5.6*2.8*5.5m
Transport Package
Seaworthy
Specification
CE SGS
Trademark
QUEENSENSE
Origin
China
HS Code
847780000
Production Capacity
1000PCS/Per Years
Product Description
This machine is applied to manufacturing printed or uncolored T-shirt bags made of HDPE, LDPE roll film. It adopts double stepping (servo) motor fixed length, and the feeding, sealing, cutting, punching holes and transporting are completed only in one process. It is of high degree of automation and good economic results.
| Model | QS-2G50 | QS-2G55 | QS-2G60 |
| Diameter of screw | 50× 2 | 55× 2 | 60× 2 |
| L/D | 28: 1 | 28: 1 | 28: 1 |
| Reduced diameter of film(mm) | 800 | 1000 | 1200 |
| Single-face Thickness of film(mm) | 0.015-0.10 | 0.015-0.10 | 0.015-0.10 |
| Max. Output(kg/h) | 40 | 65 | 80 |
| Power of main motor(kw) | 11× 2 | 15× 2 | 18.5× 2 |
| Heating Power(kw) | 26 | 30 | 42 |
| Outline diameter(L× W× H)(mm) | 4200× 2200× 4000 | 4600× 2400× 4600 | 5000× 2800× 5000 |
| Weight(T) | 4 | 5 | 6 |
