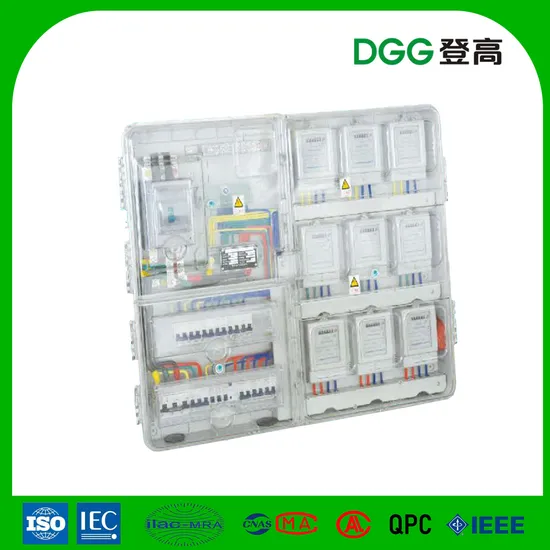

Digital Prepaid Panel Multimeter Voltmeter Electrical Power Energy Metering Box
| US$500.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MTR
Display
Digital
Installation
Direct Connected
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Meter for Industry and Home Use, Standard Electric Energy Meter, Prepayment Meter
Electric Equipment
According to User′s Requirement
Theory
Electronic Meter
Power Meter Connection
Terminal
Measured Signal
Pulse Peak
Type
Energy Meter
Certification
ISO
Rated Current
40A
Rated Voltage
380V
Casing Protection Level
IP2l3
Arc Resistance
≥ 185 Sec
Transport Package
Export Box
Trademark
DGG
Origin
China
HS Code
8504311000
Production Capacity
100000PCS/Year
Product Description
Photos of ProductTechnical Indicators
Rated Current: 40A
Rated Voltage: 380V
Rated Strength: To Earth Voltage 2000V/min
Casing Protection Level: IP2L3
Thermal deformation temperature: ≥ 170
Arc Resistance: ≥ 185 sec
Leakage resistance and marking index: ≥ 600CT1V
Model Description
1. Modular design principle, forming modular assembly, which can realize centralized table assembly.
2. It is made of SMC composite material or stainless steel to achieve the functions of flame retardancy, impact resistance, anti-aging, and rust prevention. It is beautiful and decorative; It has a modern atmosphere and can be integrated with modern houses.
3. Cable incoming line or overhead incoming line can be realized, and it can be installed in an open hanging or embedded manner; By changing the cover of the meter room, the installation of electronic meters, mechanical meters, and electric card meters can be changed.
4. In terms of structural design, it is designed according to the principles of standardization, serialization, and generalization. The box-type wiring trough is set in the box to make the wiring in the box clear and clean; It can meet the requirements
5. An anti-theft electric structure is set in the box. Even if the lead seal falls off, the junction box of the meter cannot be opened. 6.
It can be designed and customized according to user requirements.
External And Opening Dimensions
| Model Specification | Outline Dimension (W x H x B) | Opening Dimension (W x H x B) |
| ZDBX-M-1 | 215 x 420 x 155 | |
| ZDBX-R-1 | 362x547x150 | 340x510x130 |
| ZDBX-R-2 | 607x547x150 | 585x510x130 |
| ZDBX-R-3 | 852x547x150 | 830x510x130 |
| ZDBX-R-4 | 607x822x150 | 585x785x130 |
| ZDBX-R-5 | 852x822x150 | 830x785x130 |
| ZDBX-R-6 | 852x822x150 | 830x785x130 |
| ZDBX-SR-1 | 462x752x190 | 420x710x130 |
| ZDBX-SR-2 | 807x752x190 | 770x710x130 |
| ZDBX-SR-3 | 1152 x 752 x 190 | 1110 x 710 x 130 |
| ZDBX-SWR-1 | 500x680x230 | 455x645x140 |
| ZDBX-SWR-2 | 700x680x230 | 655x645x140 |
| ZDBX-SM-1 | 400x691x190 | |
| ZDBX-SM-2 | 745x691x190 | |
| ZDBX-SM-3 | 1090x691x190 | |
| ZDBX-WM | 213 x 445 x 148 | |
| ZDBX-SWM-1 | 450x640x200 | |
| ZDBX-SWM-2 | 705x610x200 |
Outline and Dimensions
