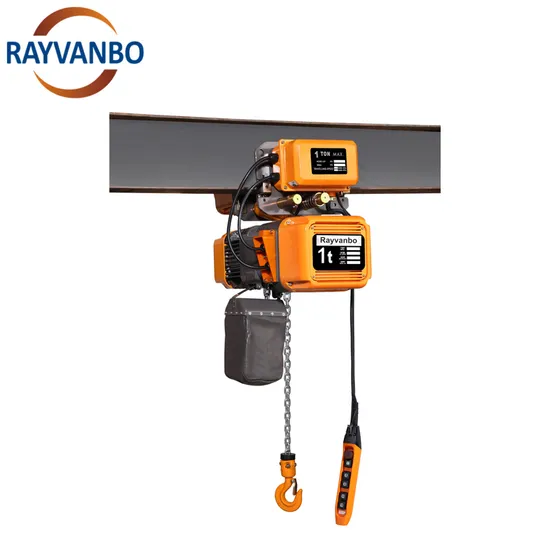

Best Selling Electric Chain Hoist 0.5t to 20t Motorized Trolley Electric Hoist

Product Description

Product Description
1. Electric Motor:
* The hoist is powered by an electric motor, typically mounted on the hoist body or housing.* The motor provides the necessary power to drive the lifting mechanism 2. Lifting Mechanism:
* The lifting mechanism consists of a chain or wire rope that is wound around a drum or sprocket.* In the case of an electric chain hoist, a load chain is used. The chain is designed to handle heavy loads and is driven by the electric motor.3. Load Chain:
* The load chain is a durable chain made of high-strength materials, capable of withstanding the weight of the load being lifted.* It is attached to a lifting hook or other load attachment device.4. Lifting Hook or Attachment:
* The lifting hook or attachment is the point where the load is connected to the hoist.* It is designed to securely hold the load during lifting and lowering operations.5. Control System:
* Electric chain hoists are typically equipped with a control system that allows operators to control the lifting operations.* Control options may include push-button pendant controls, radio remote controls, or in some cases, a control panel on the hoist itself.6. Safety Features:
* Electric chain hoists often come with various safety features, such as overload protection, emergency stop buttons, and limit switches to prevent overtravel.* Some hoists also have thermal protection to prevent the motor from overheating during prolonged use.7. Mounting and Configuration:
* Electric chain hoists can be configured for different mounting options, including hook-mounted (for attachment to a beam or trolley) or trolley-mounted (for horizontal movement along a beam).* The hoist may be designed for single or dual speed operation, depending on the application requirements.8. Capacity and Speed:
* Electric chain hoists come in various lifting capacities, ranging from a few hundred pounds to several tons.* Lifting speed is another important specification, and hoists may have single or dual speed options.
Product Details
Product Parameters

Type	Capacity(Ton)	Lifting Height(m)	Lifting Speed(m/min)	Gourd	Sports Car
ER01-01Y	1	4	7.0	47	38
ER02-01Y	2	4	7.0	91	44
ER02-02Y	2	4	3.5	54	44
ER03-01Y	3	4	7.0	104	55
ER03-02Y	3	4	3.5	108	55
ER05-02Y	5	4	3.5	132	77
ER075-03Y	7.5	4	2.3	175	77

Type	Capacity(Ton)	Lifting Height(m)	Lifting Speed(m/min)
ER01-01L	1	4	7.0
ER02-01L	2	4	7.0
ER02-02L	2	4	3.5
ER03-01L	3	4	7.0
ER03-02L	3	4	3.5
ER05-02L	5	4	3.5

Type	Capacity(Ton)	Lifting Height(m)	Lifting Speed(m/min)
ER10-04l	10	4	3.5
ER15-06l	15	4	2.3
ER20-08l	20	4	1.75
ER25-10l	25	4	1.4
ER30-12l	30	4	1.17

Type	Capacity(Ton)	Lifting Height(m)	Lifting Speed(m/min)
ER10-04Y	10	4	3.5
ER15-06Y	15	4	2.3
ER20-08Y	20	4	1.75
ER25-10Y	25	4	1.4
ER30-12Y	30	4	1.17
