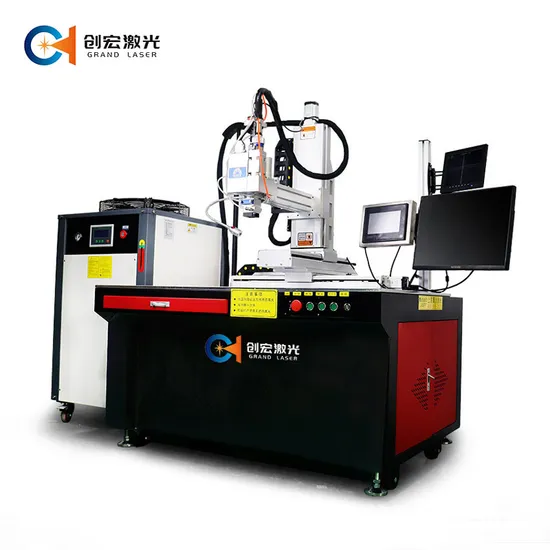

1500W 2000W 3000W Automatic CNC 3 Axis Precision Fiber Hardware Laser Welding Machine for Metal Iron Steel Aluminum Steel Copper with Good Price

Product Description

Product Parameters

Features of automatic laser welding machine technology:
Energy concentration: Based on the principle of stimulated radiation of laser, the laser beam is focused on the part to be welded, so that the energy is highly concentrated in a very small area, high temperature is generated instantly, and the material is quickly melted and connected. It can reach a very high temperature in an instant, so that the material is quickly melted to complete the welding process.
Non-contact welding: During the welding process, the laser beam is transmitted through the optical system, without direct contact with the workpiece, avoiding mechanical damage to the workpiece surface, and no need for filler materials such as welding rods and welding wires like traditional welding, reducing the introduction of impurities during the welding process.

The advantages of automatic laser welding machine:
Fast welding speed: fast working speed, short welding cycle, it can quickly complete welding tasks, greatly improve production efficiency, suitable for large-scale continuous production.
High degree of automation: The automated process reduces manual intervention and avoids time loss caused by human factors. It can be combined with computer numerical control systems or manipulators and robots to realize functions such as automatic loading and unloading, automatic positioning, and automatic adjustment of welding parameters, thereby improving the level of automation in production.

Specification	CH2000	CH3000	CH6000
Maximum Laser Power	2000W	3000W	6000W
Optical Maser Wavelength	1080nm±5nm	1080nm±5nm	1080nm±5nm
Fiber Output Quantity	Route 1	Route 1	Route 1
Fiber Length	10m	20m	20m
Welding Repetition Accuracy	0.05mm	0.05mm	0.05mm
Depth Of Weld	4.5mm Stainless Steel	6mm Stainless Steel	10mm Stainless Steel
	3mm Aluminium Alloy	5mm Aluminium Alloy	8mm Aluminium Alloy
Field Mirror Range	110*110mm,145*145mm,170*170mm,230*230mm(choosable)
Working Distance	280mm,334mm,398mm,500mm(choosable)
Input Voltage	AC220V+10%/3P+PE	AC220V+10%/3P+PE	AC380V+10%/3P+PE
Overall Power	8KW	11KW	22KW
Type Of Cooling	Water-cooling	Water-cooling	Water-cooling
Optical Fiber Interface Model	QBH	QBH	QBH
Fiber Core Diameter	20/50um	20/50um	20/50um

Cost and flexibility of automatic laser welding machines:
Low overall cost: Although the initial equipment investment is relatively high, in the long run, due to its high efficiency, low consumables consumption and easy maintenance, it can effectively reduce the overall operating cost.
Strong flexibility: Easy to program and adjust, can quickly adapt to product design changes, reduce mold replacement costs, and improve the flexibility of the production line. It can also realize the light beam splitting by time and space, and can perform multi-beam simultaneous processing and multi-station processing.
Power selection

Power	Welding Thickness for Carbon Steel	Welding Thickness for Stainless Steel
1500w	4mm	5mm
2000w	6mm	6mm
3000w	7.5mm	7.5mm
6000w	10mm	10mm

Detailed Photos
Welding samples
Material adaptability of automatic laser welding:
Wide range of weldable materials: It can weld a variety of materials, including copper, aluminum, titanium and its alloys, stainless steel, and other metal materials, as well as plastics, ceramics, etc. It can also achieve welding between different materials, broadening the scope of welding applications.
Great advantages in welding thin plates and dissimilar materials: When welding thin plates, special-shaped materials, or thin-diameter wires, it can avoid problems such as remelting, and it also has excellent results in welding highly reflective metal materials.

Automatic laser welding machine welding quality:
High precision: The laser beam can be focused to the micron level, with precise positioning, and the welding error can be controlled within a very small range, which can achieve high-precision welding of tiny parts and precision components, such as welding of circuit boards, sensors and other micro components in the electronics industry.
Excellent weld quality: During the welding process, the laser energy density is high, the weld depth-to-width ratio is large, and deep penetration welding can be achieved. The heat-affected zone is small, the welding deformation is small, and the welding spatter can be reduced. The weld is smooth, neat, beautiful, and free of defects such as pores and cracks, and the welding strength is high.
Good consistency: The welding parameters can be accurately set in advance, and the automated operation ensures that the results of each welding are highly consistent, the product quality is stable, and it is conducive to ensuring product consistency in large-scale production.
Certifications
As a professional laser welding machine manufacturer, Grand Laser relies on ISO9000 quality certification and multiple invention patents and strictly controls from raw material screening to production processes to ensure the high quality and high performance of its products.
Packaging & Shipping
Its equipment uses advanced laser technology, has advantages such as high energy density and precise focusing, and can achieve efficient welding of various materials.
With excellent quality and advanced technology, its equipment is exported to many countries in Europe, America, Asia and other countries. Exhibition photos
Grand Laser actively participates in many exhibitions at home and abroad, such as the Munich Shanghai Expo of Photonics, Shanghai Industrial Expo, etc.
At the exhibition, the company fully demonstrated its advanced laser welding machine products and technologies, exchanged and cooperated with global customers and peers, greatly enhanced its brand awareness and international influence, and further expanded the international market.
