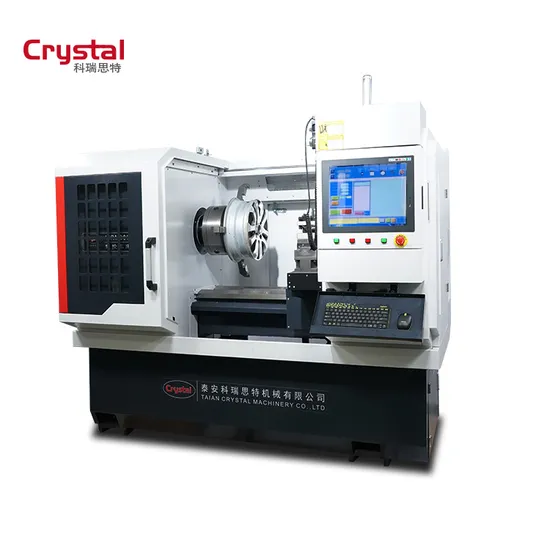

Crystal Wrm28h Wheel Repair Machine Tools CNC Lathe Machine
Basic Info.
Model NO.
WRM28H
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Swim Over Bed
770mm
Max. Size of The Wheel
28 Inch
Spindle Speed
50-1800rpm
Chuck Size
13 Inch
Stations of Tool Holder
4 Station
Max. Size of Tool Post
25*25mm
Motor Power
7.5 Kw
System
Windows
Package Size (mm)
2300*1760*1970
Net Weight (Kg)
2150
Gross Weight(Kg)
2250
Spindle Speed Control
Automatic
Transport Package
Wooden Case
Specification
CE, SGS, ISO
Trademark
Crystal
Origin
Shandong, China
HS Code
8458110090
Production Capacity
35 Sets/ Mounth
Product Description
Crystal WRM28H Wheel Repair Machine Tools cnc Lathe MachineOur purpose build alloy wheel lathe incarcerates a user friendly multi-touch interface for
simplified probing and cutting processes. With full digital optimization build directly into
the interface, there is no need of a separated computer system to house the software,
making this our best ALL IN ONE solution for repairing diamond cut alloy wheels.
Wheel Repair Lathe Advantages
1. Cuts wheel up to 28''.
2. 17 inch interface touchscreen.
3. With CE, SGS, ISO, BV certificates.
4. Automatic ruby probe system.
5. Self-developed optimization software.
6. Free Training video and manual.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
| ITEMS | WRM28H | |
| Max. swig over bed (mm)(inch) | Φ770(30') | |
| Max. Diameter of alloy wheel(mm) (inch) | Φ710(28') | |
| Max. Stroke of the X-axis(mm) | 390 | |
| Max. Stroke of the Z-axis (mm) | 880 | |
| Width of the rail (mm) | 300 | |
| Length of the rail (mm) | 1320 | |
| Size of the three-jaw chuck (inch) | 13'' | |
| Range of spindle speed (RPM) | 500-1800 | |
| Spindle speed control | Automatic | |
| Spindle bore (mm) | Φ82 | |
| Taper of spindle bore | 1:20(Φ90) | |
| Taper of spindle nose | A2-10 | |
| Adjustable stroke of carrier in X direction | 100mm | |
| Max. size of tool post | 25×25mm | |
| Stations of tool carrier | 4 position | |
| Min. setting unit of motor | (Z) long 0.001mm, (X) cross 0.001mm | |
| Moving speed of post | (Z) long 8m/min, (X) cross 6m/min | |
| Motor power | 7.5KW | |
| Machine size | (L/W/H) (mm) | 2150/1390/1750 |
| Package size | (L/W/H) (mm) | 2300/1720/2170 |
| Net weight | 2400KG | |
Standard configuration
| wireless key&mouse 1 set | diamond cutter 1 set inner |
| diamond cutter 1 set outer | special ordered soft jaws 1 set |
| high precision prob system 1 set | 4 station tool which can adjust X stroke |
| automatic lubrication system | cooling system(standard) |
| full cover safety door | tool case |
| training videos | -- |
