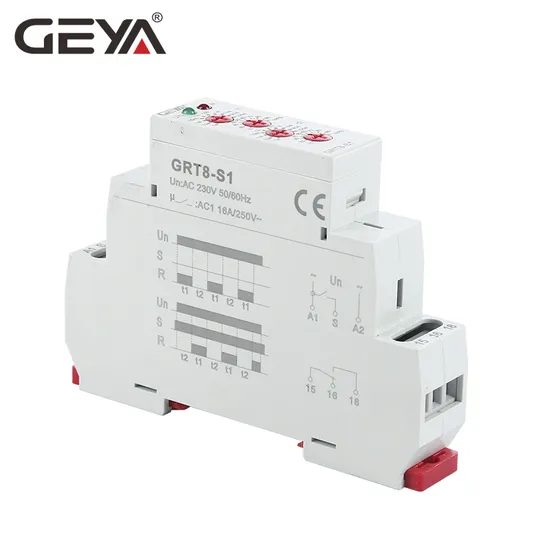

Geya Grt8-S Wide Voltage Cycle Asymmetric Time Relay AC/DC12V-240V AC230V
Basic Info.
Model NO.
GRT8-S1 AC/DC12V~240V
Phase
1/3
Electricity Type
AC/DC
Number of Pole
2
Load
Low Voltage
Protective Characteristics
Enclosed Relay
Action Principle
Electronic Type
Size
Miniature
Type
Electric Parameter Relay
Warranty
18m
MOQ
20
Function
Asymmetric Cycler Time Relay
Supply Terminals
A1-A2
Transport Package
Standard Box
Specification
GRT8-S1 AC/DC12V~240V
Trademark
GEYA
Origin
Zhe
HS Code
8536490090
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description
············This link price is only for GRT8-S1 AC/DC12V~240V············ Product Description Applications-It is used for regular room ventilation, cyclic dehumidification, light control,circulating pumps, noon signs, etc.
Feature
-2 time functions:
-Cycler beginning with pulse
-Cycler beginning with pause
-Function choice is done by an external jumper ofterminals S-A1.
-Time scale 0.1 s -100 days devided into 10 time ranges:(0.1s-1s/1s-10s/0.1min-1min/1min-10min/0.1 hrs-1h/1hrs-10 hrs/0.1day-1day/1day-10 days/3 days-30 days/ 10 days-100 days).
-Relay status is indicated by LED.
-1-MODULE,DIN rail mounting.
| Model NO | GRT8-S1 OR GRT8-S2 |
| Function | Asymmetric Cycler Timer Relay |
| Voltage Range | AC230V (A230) OR AC/DC12V-240V (W240) |
| Output | 1 SPDT OR 2 SPDT |
| Supply Terminals | A1-A2 |
| Supply Voltage Tolerance | -15% +10% |
| Time Setting | Potentionmeter |
| Supply Indication | Green LED |
| Output Indication | Red LED |
| Rated Frequency | 50/60HZ |
| Rated Current | 16A/AC1 |
| Protection Degree | IP40 for front Panel / IP20 for Terminals |
| Weight/pcs | 0.1KG/PCS |
| Standard | EN 61812-1,IEC60947-5-1 |
| Certifications | CE CB CCC TUV |
| Warranty/guarantee | 18months |
| MOQ | 1PCS |
