Plastic Ceiling Panel Production Line/ PVC Ceiling Panel Extruder

Product Description

plastic ceiling panel production line/ pvc ceiling panel extruder
Product Description
PVC ceiling making machine/PVC wall panel production line features
1. This plastic production line is suitable for the production of PVC and WPC as raw material products.
2. By replacing the mould, the same production line can be used to produce PVC/WPC ceiling panel,wall panel,U-Clip,flooring,decorative lines etc.
3.Depending on the different products,this production line can be configured with on-line hot printing and off-line lamination.
PVC ceiling making machine/PVC wall panel production line list

No.	Machine Name	Quantity
1	Screw feeder	1 set
2	SJSZ series conical twin screw extruder	1 set
3	Extrusion Mould	1 set
4	Vacuum calibration table	1 set
5	Haul-off machine	1 set
6	Automatic cutting machine	1 set
7	Stacker	1 set
Supporting machine(Optional)
1	High speed mixing machine	1 set
2	Hot stamping machine(or Laminating machine)	1 set
3	Crushing machine	1 set
4	Milling machine	1 set

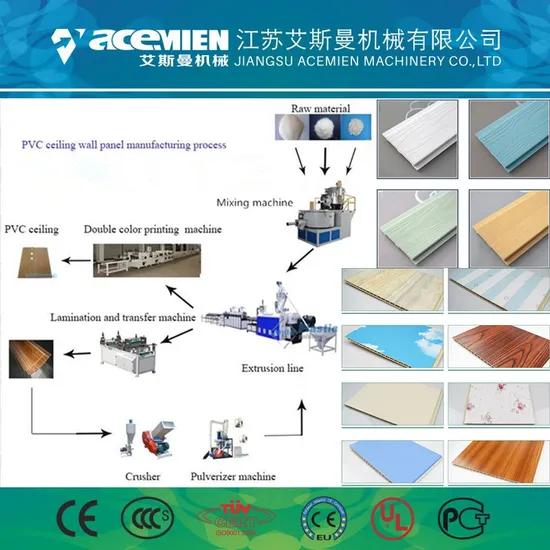

On-line hot stamping process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Hot stamping machine →Haul-off machine→ Cutting machine → Stacker(finished product)
Off-line transfer laminating process
Raw material mixing→ Screw feeder → Extruder → Mould → Vacuum forming table→Haul-off machine→ Cutting machine → Transfer table→ Lamination machine → Stacker(finished product)
Waste plastic:Crushing machine→Milling machine
Technical Parameter
1. PVC wall panel extrusion machine is a kind of special equipment for extruding PVC compound. With different kinds of molds and auxiliary machines, it can produced all sorts of PVC plastic, profile, plate material, sheet material, bar material and granulation.
2. PVC extrusion for plastic ceiling panel have applied oil cooling system. Barrel is cooled by special wind cooling system.
3. Ceiling Panel and wall panel extruder plant system has applied special computer control. According to customers requirements, most reasonable structure of conical twin screw can be made so as to achieve best plastic city performance and material quality
4. Plastic Extruder machine for Wall panel is made by high precision special digital screw miller; extruding property can be highly harmonized. It has firstly introduced advanced technique of producing screw with variable pitch and depth, so that the material can be more softly sheared and cut.
5. The distribution box on Walling Panel making machine is specially designed, pull force bearing is fully imported, and the drive life span can be prolonged. It can bear large extruding pressure.
6. Plastic extrusion for PVC wall panl and ceiling panel electrical system has mainly applied imported parts, it has multiple alarm system, and there are few problems which can be easily eliminated. The cooling system has applied special design, heat emission area is enlarged, the cooling is rapid, and temperature control tolerance can be ± 1 degree.

The popular model often chosen by our customers:

Popular Model	SJ-400	SJ-600
Extruder	SJZ65/132	SJZ80/156
suitable size of panel	300mm,400mm	400mm, 600mm
Max capacity(kg/h)	about 220	about 350

Our Service
1. Turn key project
2. Technical documents
We will offer you all necessary documents, e.g. general layout plan, water scheme, electrical diagram and user manual after the contract is executed.
3.Arrangement for inspection, installation and testing work
We will inspect and test the machine in our factory first before shipping the machine. Customers are welcome to come and check the working machine, until the machine produces the exact products as customers requirements, and learn operation in our factory.
After the machine is delivered to customer's factory, we will send one or two technicians to customer's factory for on-site installation and commissioning of the whole machine line. Meanwhile, technicians will give free training lessons to workers in customer's factory.
4.The guarantee period of the whole machine is 12 months.
5.Technical support from our factory is free of charge for all the life; quick response to any questions from customers.
Why choose us:
1. Low cost : all the machines ,we make them by ourself to reduce the cost for our customers.
2. Genuine product with excellent quality : we choose our material very strict, all the material come to our factory must pass the quality test substandard goods are returned to the supplier.
3. Engerneers available to serve oversea.
4. Quick delivery: the company provide just in time delivery with its streamlined supply chain.
5. Cost saving: we take strong attention to every detail in the manufacturing process,the quality control in our factory is very strict, all defective semi-manufactures must be treated again or reject. all the machine must be checked out ,then deivered to our customer. all about that pushing up the price, what we want to do is give our customer a good quality product with stable working and long lived.
FAQ
1.Q: Are you an industry manufacture factory or a foreign trade company?
A: We are an industrial manufacture factory of plastic extrusion machinery and auxiliary equipment, which locates in Zhangjiagang city, China.
A: Loading Port: Shanghai by sea or by train.
2.Q: Payment term:
T/T, L/C, West Union, or Cash, etc.
3.Q: Do you have any other services for your products?
A: We have rich experience in manufacturing plastic machinery, so we can manufacture various machines according to customers' requirement.
4. Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
