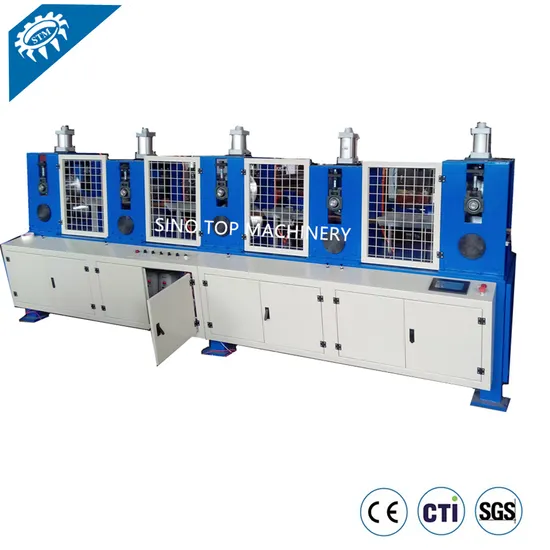

China Paper Edge Board Protector Corner Guard Machine

Product Description

China paper edge board protector corner guard machine
Prodcution Descripton
1. cardboard edge protector machine
2. max speed: 45m/min
3. width: 15-120mm
4. thickness:1.0-10mm
5. Shortest:50mm
Packge & Delivery
1.Wooden case or transparent strength film and corner board to protect
2. Delivery time: 30-70days
Options of Edge Protector Machine
ZHJ120A for only V shape edgeboard
ZHJ120AP for V corner baord and flat cardboard
ZHJ120PU for U edge protector and flat board
ZHJ120AS for cutting and punching for corners
Advantage of EDGEBOARD MACHINE
1. fine treatment of all parts
2. automatic paper holder with manual work
3. cutting accuracy reach 1mm/m byPLC and Servo motor control
4.warnning alarm to remind the breakdown part to promise safty operation
5.counting funcation for production amount for one time and whole day
6.self control of guling pump
7. 3-in-1 gluing system
8.8 sets of pressing roller with high speed
9.mute operationa and production with automatic staking of corner board and delivery
Usage and Funcation
Brief Intruduction of US
Factoy locates in WUXI,CHINA, it is a new factory comes from ZHONGJIANTE enterprise, one is in wuxi for production base and one office in suzhou for sales center who' s quite near shanghai port. It is full of exporting experience paper packaging machine to JAPAN, DUBAI, FINLAN, BRAZIL.
Best quality and best service to be NO.1 and make the top one in the world.
Warranty
One year wanrranty, and whole life after sale service. 24 hours servie.
Main Products
Honeycomb machine, edgeboard machine, slitting machine, slip sheet machine, automatic dunnage bag machine, flat baord machine, gluing machine, corrugated machine,ect
Relevants products
Honeycomb core, honeycomb cardboard, corner board, edgeboard protector, angle board, slip sheet, anti-slip sheet, flat board, dunnage bag, air bag.

Max Width	V-type: 15-125mm	For V-type: 15-125mm Flat-type:50-200mm U-type: Max 60mm
Paper Rolls Type:	Straight type or 90 degree folding type	Straight type or 90 degree folding type
Edge Board Thickness	1mm-10mm	1mm-10mm
Max Layers	13	13
Cutting Accuracy	±1mm/m	±1 mm/m
Cutting Ways	Hydraulic or Servo Cutting	Hydraulic or Servo Cutting
Cutting Speed	Max 40m/min	Max 40m/min
Gluing Ways	Double or Single Side Gluing	Double or Single Side Gluing
Cutting Length	More than 250mm	More than 250mm
Install Power	9kw	9kw
