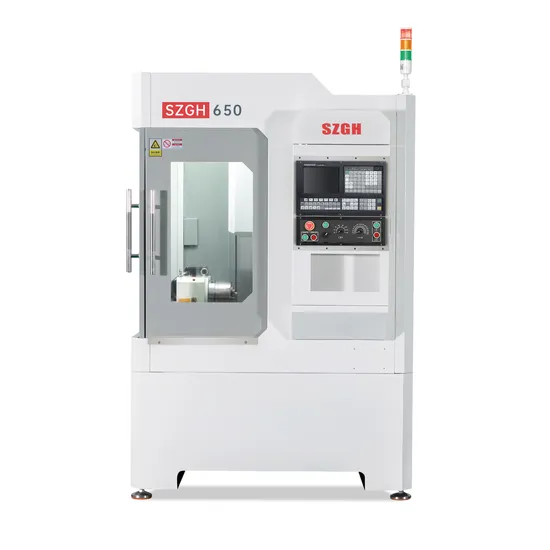

SZGH Small Universal Milling Machines For Metal Process- SZGH-650 (matched CNC Controller Model SZGH-CNC1000MDb-3)
It is suitable for processing copper, iron, aluminum and stainless steel workpieces within 600mmX500mm.The operation is compatible with the general machining center in the market, and supports drilling, tapping, milling, engraving and other functions.Using multiple patented technologies such as high rigidity and anti-deformation structure, it is suitable for processing stainless steel parts with tapping within 30mm and drilling within 20mm.Due to the small footprint, it is convenient for one person to manage multiple machines, improving per capita output efficiency and reducing processing costs.
Standard Data

Project		Unit	Standard value	Max value
Processing capacity	Maximum drilling diameter	mm	Aluminum φ35/ Steel φ30	Aluminum φ40/ Steel 35
	Max. Tapping Diameter	mm	Aluminum m25/ Steel m18	Aluminum m25/ Steel m20
	Max. milling cutter diameter	mm	φ60	φ100
	Max. Spindle speed	rpm	6000	Optional 24,000-rpm motorized spindle
	Handle Type	-	BT40	Optional BT30
	Magazine capacity	-	10-station servo tool magazine	12 station tool magazine
	Repeatability	mm	0.01	-
	Surface engraving accuracy	mm	±0.02	optional ±0.01
workbench	Distance from table surface to spindle end	mm	Minimum 150 Maximum 450	-
	Effective stroke of working surface	mm	600*500	-
Travels	X-axis effective travel	mm	500	-
	Y-axis effective travel	mm	600	-
	Z-axis effective travel	mm	300	-
Feed	X-axis rapid traverse	m/min	25	30
	Y-axis rapid traverse	m/min	25	30
	Z-axis rapid traverse	m/min	20	25
	Various cutting suggested speeds	m/min	1000	-
Spindle	Max.Spindle Speed	rpm	6000	Optional 24000electric spindle
	Spindle Motor Power	kW	3.7	Optional 5.5kw
	Spindle type	-	mechanical spindle	Optional electric spindle
	Spindle taper	-	BT40	Optional BT30
Dimensions	Dimensions	mm	1650*1800*2450	-
	Total Weight	kg	2900	-
Machine tool specifications and component items		Specification	Standard	Optional
Part Specifications	Screw	32mm	Taiwan precision p grade	-
	Guide rail	30mm	Taiwan Precision C3 Grade	-
	Spindle	BT40	Yashu self-made	other
	CNC Control	-	Yashu self-made	Optional Huazhong
	Feed servo	X.Y1.2kw&1.5kW	Yashu self-made	Optional Huazhong
	Spindle servo motor	3.7kW	Yashu self-made	Optional Huazhong
Machine specifications	Tool magazine	10/12 handle	Yashu self-made	-
	Base form	1200kg	Heavy-duty anti-deformation patented base	-
The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.

Matched Controller: SZGH-CNC1000MDb-3
Support ATC function!!(Linear Tool &bamboo/umbrella Magazine)!
1) The three axes of X,Y,Z control, three axes linkage movement.
2) 2ms interpolation cycle,1um precision.
3) 5MHz Output Pulse Frequency, Maximum speed: 300m/min,Feeding speed: 150m/min.
4) Multiple function,it can realize the drilling/boring,roughing of roun groove/rectangle groove,finishing of full circle/rectangle,continous drilling of straight line/rectangle/arc etc.
5) Support Macro function, PLC ladder function, and 3 D teaching function, ATC.
6) Memory Capacity: 128MB,User Store Room: 110MB.
7) 8.4 inches(800*600) real color LCD displayer.
8) Support Metric system/Inch System,with function of auto charfering.
9) Display in Chinese and English,which can be selected by parameter.
10) With USB interface,support USB file processing,software upgrade.
11) DNC in high speed,realize part program real-time transmission processing.
12) Analog voltage output of 0V~10V in two channels,support two-spindle control.
13) Support external MPG.
14) Basic I/Os: 56*40, 40*32 can be edited freely.
15) Built-in standard PLC program,and can be customized edited according to customer's requirements.
16) High anti-jamming switch power(220VAC -> DC 24V&5V)
Machine Tool

The high-rigidity cast base and gantry provide confidence of perfect stability and high precision when operating.	2.6 kW, 5000 RPM spindle motor with BT30 shank, equipped with a 6-station linear pneumatic tool changer, which can change tools more efficiently.	The drive structure uses high-precision screw guides and a fully enclosed protective cover for three axes prevents cutting fluid and iron chips from entering the screw guides during machining, reducing the workload of maintenance.
Carousel type tools changer, tooling number up to 8 pcs, automatic exchange.	Size 500* 400mm T-slot table for handling the workpiece up to 200kg.	Equips with auto lubrication system to ensure transmission system smooth and long-term running.

Applications
1. Metal processing: SZGH-540 vertical milling machine is suitable for metal processing field, can milling, drilling, boring, and other process operations. It is widely used in mold manufacturing, aerospace, automobile manufacturing, and other industries.
2. Parts processing: SZGH-540 vertical milling machine can be used to process various parts, including precision parts, complex structure parts, etc. It provides high-precision machining capabilities to meet the needs of parts processing.
3. Education: SZGH-540 vertical milling machine can also be used in the field of education and training. It can be used as a teaching experiment equipment to help students learn and understand CNC machining technology, and cultivate.

Advantages And Features
1.Anti-deformation patented heavy-duty base, heavy enough to support fast
2.The weight is enough to support the anti-vibration and improve the accuracy and smoothness
3.The key components adopt high-quality wear-resistant configurations such as Taiwan, and the sleeve and spindle are all dynamically balanced
4.The key components are equipped with high-quality wear-resistant configurations from Taiwan, which makes the machine tool more durable within the design accuracy range.
