Featured Product Clay Powder Making Machine with CE ISO Approved for Sale in Pakistan Calcium Carbonate Gypsum Limestone Quartz Powder Factory

Product Description

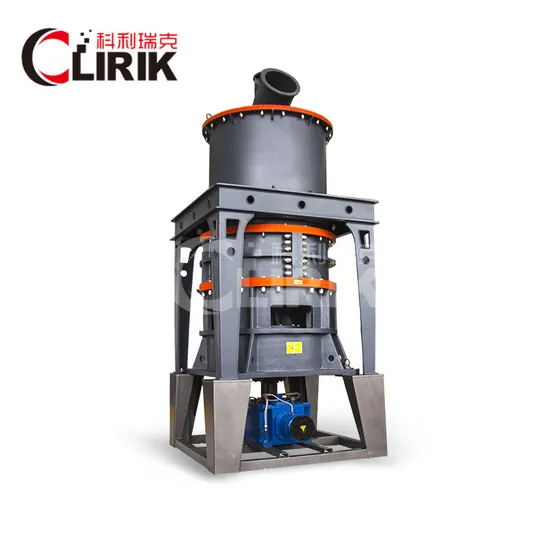

Clay stone powder grinding machine
Clay stone powder grinding machine


Brand: Clirik


Powder Fineness Process Ability: 300-3000 mesh
Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.2-45 t/h
Range of application: Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.

As one of the best Micro Powder grinding mill manufacturer or supplier, CLIRIK has developped and manufactured more and more advanced grinding machine. The Micron Powder grinding mill is kind of popular micro milling machine. The ultra fine powder mill is invented by absorbing advantages from the same trade home and abroad.
Micro Powder Grinding Mill is suitable for the super fine grinding of all kinds of crisp materials whose Moh's hardness is below 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, white mud, mica, refractory material, glass, total about 1000 kinds of materials.
Advantages of Clay stone powder grinding machine
1. The yield is 40% higher than other mills.

2. High utilization rate of Wear material:2-5years.

3. Adjustable particle size:325-3000mesh.

4. High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.

5. Closed system, so it is the green and ideal equipment for environment protection.

6. Environment-friendly:The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

Working principle of Clay stone powder grinding machine
After crushed by hammer crusher, the large materials become small ones and are sent to storage hopper by elevator, and then evenly sent to the upper distribution plate of the turn plate by vibrating feeder and sloping feeding pipe.When the grinding mill is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger.The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers.The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow:The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector.Most of the qualified powders will fall and exit from the discharging valve at the bottom;A small proportion of the fine powders, with airflow, moves to the dust cleaner.The materials from the above two lots are sent by the conveyor to get finished powders packed.In addition, filtered clean air will be emitted from muffler in the end.
Parameter Date of Clay stone powder grinding machine
Parameter 1

Model	HGM80	HGM90	HGM100	HGM125	HGM168L
Ring Diameter(mm)	800	900	1000	1250	1680
Ring Number (PCS)	3	3-4	4	4	4
Roller Number(PCS)	18-21	24-29	28-36	30-44	30-40
Main Shaft Speed (r. p. min)	230-240	200-220	180-200	135-155	120-130
Input Size (mm)	≤10	≤10	≤15	≤15	≤20
Finished Size (um/mesh)	74-5 (200-2500)	74-5 (200-2500)	74-5 (200-2500)	100-6 (150-2000)	100-9 (150-1500)
Capacity (t/h)	0.4-4.5	0.6-6.5	1-9	2-16	3.8-30
Outlet Size L*W*H (m)	13.9*4*6.2	14.7*4.8*7.2	18*4.6*8.6	14*9*10.25	26.3*7.5*11.9

Parameter 2

Unit: KW	HGM80	HGM90	HGM100	HGM125	HGM168L
Main Unit	55-75	2*45	132	185-200	315
Classifier	18.5	18.5	30	37-4*15	5*18.5
Blower	45	55	75	2*45-2*55	2*75-2*90
Crusher	18.5	18.5	18.5	45	75
Bucket Elevator	3	3	4	4	7.5
BeltConveyor Feeder	2.2	2.2	2.2	3	3
Spiral Conveyor	3	3	3-4	2*3	2*5.5
Discharging Valve	2*0.75	1*0.75 1*1.1	2*1.1	2*1.1	2*0.75-2*1.5
Air compressor	11	15	22	2*15-37	55

Other Producte Offered
Company Information
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on.Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front.
Our service of Clay stone powder grinding machine
1.One year guarantee for whole machine except for wear parts
2.24 hours technical support
3.Calling service
4.User manual available
5.Reminding for the service life of the wearing parts
6.Installation guide for clients from both China and abroad
7.Maintance and replacement service
8.Whole process trainling and guidance from our technicians
Our Exhibition
Inquiry Service of Clay stone powder grinding machine
Please fill in your need products and your message if you like to be contacted.Pls kindly check the following:
1.What is the raw material do you want to process?
2.What is the capacity per hour do you need?
3.What is the raw material input size?
4.What is the output size of your product?
We hope you can tell us these details, we will give you the best quotation, technical data and solution drawing ASAP.Your satisfaction is our greatest pursuit, we would like to sincerely for your service!We look forward to your inquiry!
