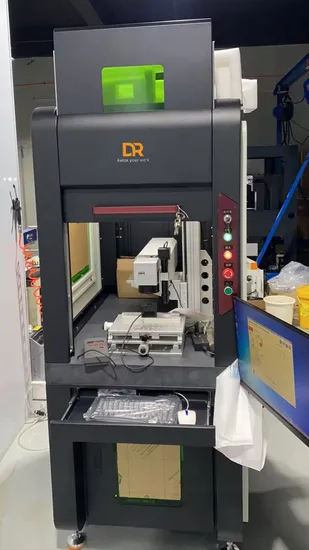

Precision Glass Laser Cutting Machine
| US$38,000.00-70,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
DR
Standard Modular Design
Standard Modular Design
Cooling System
Water Cooling
Applicable Material
Nonmetal
Technical Class
Continuous Wave Laser
Type
YAG Laser
Laser Wave
532-1064nm
Pulse Frequency
1-4000kHz
Cutting Thickness
Less Than 20mm
Edge Collapse Range
1-200um
Dust Removal System
High Negative Pressure Smoke and Dust Machine
Drilling Area
Less Than 100 mm
Cutting Speed
0-6000mm/S
Transport Package
Wooden Packaging
Specification
unit
Trademark
DR
Origin
Jinan
HS Code
8456110090
Production Capacity
1000
Product Description
Application fields of glass laser cutting machine:Electronic products (through-hole, blind hole), camera lenses, optical lenses, car glass, medical equipment, home appliance glass, tea utensils, glass containers, glass doors and windows, photovoltaic glass backboards, semiconductor AR LCD screens, filters, quartz glass, etc.
Application scope of glass laser cutting machine:
Sodium calcium glass (ordinary glass), ultra white glass (low iron glass), K9 glass, high borosilicate glass, quartz glass. Note: Tempered glass is no longer suitable for punching holes. When tempered glass is damaged by external forces, it will form honeycomb like small blunt angle particles.
| Device Name | Nanosecond laser glass drilling machine |
| Laser power | 45W/30W |
| Laser wavelength | 532nm |
| pulse width | 7ns 100khz |
| Pulse frequency | 50-500khz |
| Cooling method | water cooling |
| Cutting method | Electric control Z-axis+2D galvanometer |
| Cutting head | Scanning field mirror+telephoto lens |
| Drilling area | <100 |
| Cutting speed | 0-6000mm/s |
| Cutting thickness | <20mm |
| Collapse range | 30-200um |
| positioning accuracy | ±3um/±5um |
| Cutting format | 600mm*600mm |
| Drive motor | Linear motor/servo motor |
| Software performance | Support cutting data mode:DXF,DWG |
| Dust removal system | High negative pressure smoke and dust machine |
| Power specifications | AC220±5%, L+N+E,<3Kw |
| Equipment weight | <1500kg |
