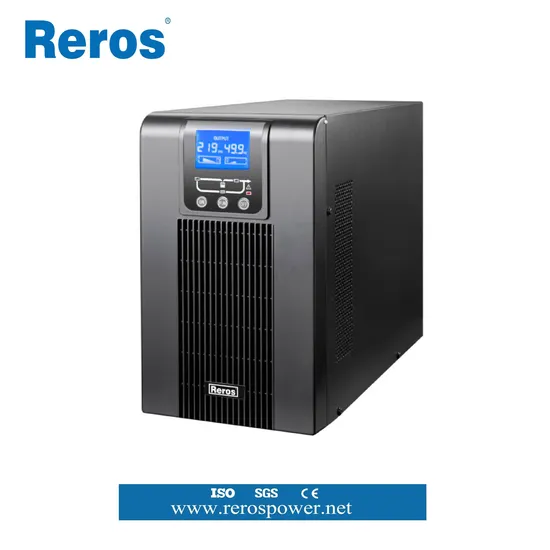

Online High Frequency Double Conversion PF1.0 1-30kVA UPS with IEC/Schuko/Universal Outlets
| US$92.00-316.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
W1-30K
Protection
All Type
Application
Communication
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Customization
Equipment Mode
Decentralized
Brand
Reros
OEM/ODM
Yes
Communication
RS-232/Snmp Card
Display
LCD/LED
Power Factor
1.0
Waveform
Pure Sine Wave
Transport Package
Carton
Specification
7-40kgs
Trademark
REROS
Origin
China
HS Code
85044020
Production Capacity
8000PCS/Year
Packaging & Delivery
Package Size
355.00cm * 145.00cm * 226.00cm
Package Gross Weight
12.000kg
Product Description
W1KVA-30KVAProduct IntroductionHigh frequency W1KVA-30KVA series is based on double conversion on-line intelligent UPS, it adopts advanced DSP digital control technology, has functions of higher output performance indicators and a number of innovative design features, is the ideal solution for small-capacity power supply scenarios, can fully eliminate all kinds of power grid problem. Support for tower installation, built-in battery. Main feature
1.Full digital control technology
2.Output power factor up to 1.0
3.LCD display panel
4.RS232 communication port
5.Intelligent SNMP+USB+EPO+dry contact (optional)
6.High power density design
7.AC/AC efficiency up to 95%
8.ECO function
Application
1.Data center
2.Network device
3.Commercial facility
4.Precision instrument
5.Home, Office and other AC power supply
Specification
| Model | W1KS(L) | W2KS(L) | W3KS(L) | G116KS(L) | G11/3110KS(L) | G11/3115K | G11/3120K | G11/3130K | |||||
| Capacity | 1kVA | 2kVA | 3kVA | 6kVA | 10kVA | 15kVA | 20kVA | 30kVA | |||||
| Input features | |||||||||||||
| Voltage(Vac) | 120VAC~300VAC | 120-300(1/1)/266-475(3 /1) | |||||||||||
| Frequency(HZ) | 45~66 | ||||||||||||
| Phase | Single phase | Single phase/3φ4W+PE | |||||||||||
| Power Factor | Full load ≥0.95 | Full load ≥0.98 | |||||||||||
| Battery voltag(Vdc) | 24/36 | 72/72 | 72/96 | 192(16-20pcs can be adjustable) | |||||||||
| Battery type | 2*9Ah 12V/External | 6*9Ah 12V/External | 6*9Ah 12V/External | 16*9Ah 12V/External | External | ||||||||
| Output features | |||||||||||||
| Power factor | 1.0 | 0.8/0.9/1.0 | |||||||||||
| Voltage(V) | 220/230/240±1% | ||||||||||||
| Frequency(HZ) | 50/60±0.05%(battery mode) | ||||||||||||
| Transfer Time(ms) | 0 | ||||||||||||
| ≥92% | ≥93% | ||||||||||||
| Waveform | Sine Wave,Linear Load THD<3%;Non-linear Load THD<5% | ||||||||||||
| Overload | 105%~129% full load keep 60s;130%~150% load keep 30s;Above 150% load keep 300ms | 105%~125% ,transfer to bypass after 10 mins;125%~150%,transfer to bypass after 30secs;Above 150%,transfer to bypass after 0.5 second. | |||||||||||
| Crest Factor | >3:1 | ||||||||||||
| Output socket | EU/IEC/UK( optional) | Terminal block | |||||||||||
| Others | |||||||||||||
| DC start | Yes | ||||||||||||
| Backup time | Normally 5-8 mins/Long time need to depend on demands | ||||||||||||
| Communication function | RS232(USB/dry contact are optional) | ||||||||||||
| SNMP(optional) | Can be network monitored by SNMP adapter | ||||||||||||
| Display | LED display UPS work status, LCD display UPS work parameters | ||||||||||||
| Noise (dB) | <50(within 1 meter) | <55(within 1 meter) | |||||||||||
| Parallel function | No | Yes(optional) | |||||||||||
| Alarm | Battery low-voltage, mains abnormal, overload, UPS fault, over temperature protection | ||||||||||||
| Protection | Input over-voltage protection, battery under-voltage protection, overload protection, short circuit protection, over temperature protection. | ||||||||||||
| Working temperature(ºC) | 0~40 | ||||||||||||
| Humidity | 0~95%,Non condensing | ||||||||||||
| Size(D×W×H) (mm) | 355×145×226 | 402×190×326 | 500×248×616(S&3/1)/500×240×460(L) | 500×248×616 | |||||||||
| Weight(KG) | 7/12 | 8/19 | 8/24 | 19/16 | 64/21(1/1 )30(3/1) | 36 | 39 | 42 | |||||
Welcome to contact us!
