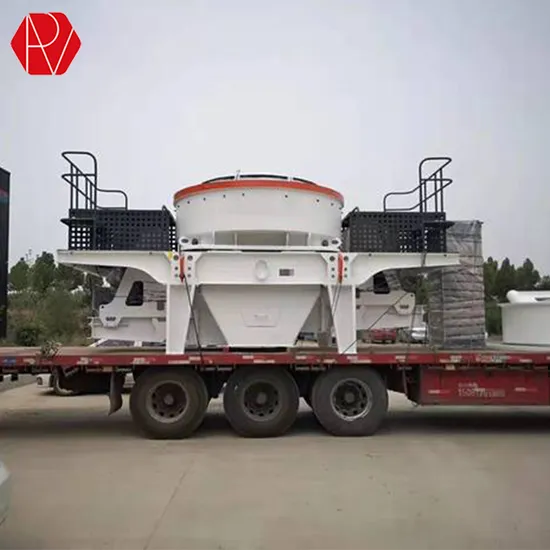

Shanbao Stone Vertical Shaft Impact Crusher for Sale
| US$25,000.00-60,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
VSI5X7615
Theory
High-Speed Grinder
Crushing Level
fine
Application
Chemical Industry, Railroad, Construction, Metallurgy
Structure
Vertical
color
yellow/white
Installation
Engineers Could Guide in the jobsite
Technical service
The whole using life
Max Feeding Size(mm)
35
Side and Central Feeding Throughput(tph)
150-280
Full Central Feeding Throughput(tph)
70-140
Speed(rpm)
1700-1900
poweR(kW)
75X2
Dimension(mm)
4100X2330X2300
Motor Type
AC Motor
Transport Package
Main Machine in Pallets, Motor and Accesssories in
Trademark
PV/HCTC/TRUEMAX
Origin
Zhejiang, China
HS Code
8474100000
Production Capacity
100sets/Month
Product Description
VSI series impact crusher adopt the latest internation technology,with high stable and high capacity production.This series crusher has three function: crushing,making sand and shaping,widely used in the sand making plant.
| Model | Soft | Hard | Side and Central Feeding | Fully Central Feeding | Speed(rpm) | Power(kW) | Dimension(mm) |
| Max Feeding Size(mm) | Throughput (tph) | ||||||
| VSI7611 | 35 | 30 | 120-180 | 60-90 | 1700-1890 | 55x2 | 4100x2250x2258 |
| VSI5X7615 | 35 | 30 | 150-280 | 70-140 | 1700-1900 | 75x2 | 4100x2330x2300 |
| VSI8518 | 40 | 35 | 200-260 | 100-130 | 1520-1690 | 90x2 | 4140x2280x2425 |
| VSI5X8522 | 40 | 35 | 240-380 | 120-190 | 1500-1700 | 110x2 | 4140x2500x2700 |
| VSI9526 | 45 | 40 | 300-380 | 150-190 | 1360-1510 | 132x2 | 4560x2450x2780 |
| VSI5X9532 | 45 | 40 | 350-540 | 180-280 | 1300-1510 | 160x2 | 4560x2600x2900 |
| VSI1140 | 50 | 45 | 450-520 | 225-260 | 1180-1310 | 200x2 | 5100x2690x3200 |
| VSI5X1145 | 50 | 45 | 500-640 | 250-360 | 1100-1310 | 220x2 | 5000x2790x3320 |
Hangzhou Cohesion Technology co.,Itd has been specializing in manufacturing and supplying mining equipment and the relevant parts for over 20 years. With its own brand "PV"&"HCTC"&"Parts Village"Hangzhou Cohesion has won the fame in the industry of crushing machinery globally.
Our products include: jaw crushers, cone crushers, impact crushers, vibrating feeders, vibrating screens, belt conveyors, crushing plant, dust collector & etc. Our technical team can customize for your crushing and screening plant based on your requirements.
The crusher parts we produce almost apply for all the famous brands, the products suit for Metso, Sanvik, Terex, Trlo, Symons, Shanbao, Shibang & etc.
We are dedicated to providing "the one-stop solution service"for mining equipment and the relevant parts. We are aiming to make our customers' job easier and to make their business more successful.
