Threaded Aluminium Conduit Body Lr Type Outlet Box Caja Salida Conduleta

Product Description

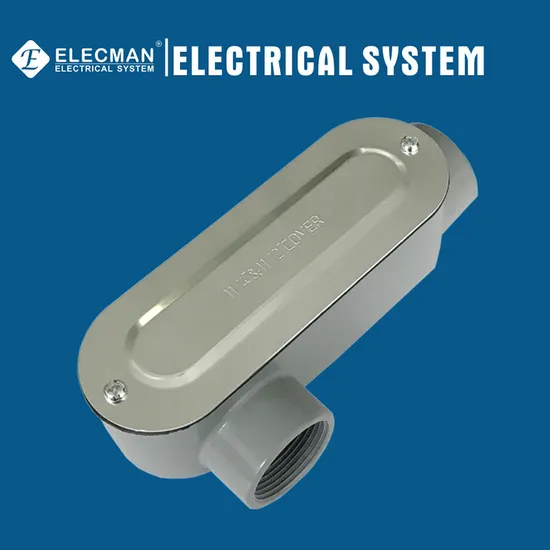

ELECMAN ® Threaded Aluminium Conduit Body LR Type Outlet Box Caja Salida Conduleta
PRODUCT: Threaded Conduit Body (UL file #E513113)
SERIES: LR
MATERIAL: Aluminum Die Cast
COLOR: Gray
SURFACE TREATMENT: Powder Coat Finish
TYPE: Threaded Type
APPLICATION:
ELECMAN threaded conduit bodies are used with threaded rigid/IMC conduit for pulling access or to split a run into multiple directions. Removable cover allows access for maintenance and making taps and splices to conductors. powder-coated finished treatment and water-tight gasket ensure a weatherproof installation.
FEATURES:
·Durable die cast aluminum construction.
·Premium powder coat finish.
·Stamped aluminum cover.
·Includes NBR synthetic rubber gasket.
·Combination head screw.

Cat.#	Size	Dimensions
		Height/cm	Length/cm	Width/cm
TLR50	1/2"	4.05	10.95	5.15
TLR75	3/4"	4.73	12.91	5.85
TLR100	1"	5.40	15.03	6.81
TLR125	1-1/4"	6.95	19.86	8.94
TLR150	1-1/2"	6.95	19.86	8.94
TLR200	2"	9.25	25.53	10.85

PACKING INFORMATION
Cover, gasket, two screws included
Individually shrink-wrapped for each conduit body
Individually shrink-wrapped for each conduit body
External packing: Corrugated carton
