Portable Variable Message Sign for Traffic Safety
| US$7,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HL-TR-R
Pixel Pitch
50mm
Pixel Configuration
4G,4r,4W,4b,4y
Display Function
Image & Text Display, Text Display
Average Power Consumption
180W / m²
Pixel Density
400
Scanning Mode
Static Scan
Display Type
LED Dot Matrix Display
Application
Traffic Safety
Certification
CE, RoHS
LED Display
2600mm(W)*1600mm(H)
Hydraulic Rotating System
Screen Can Rotate 360degrees
Wing-Against Level
Against Level 8wind After Screen Lift up 1000mm
Power
AC Power
Transport Package
Wooden Box
Specification
LED display with trailer
Trademark
SP
Origin
Zhejiang, China
HS Code
85318090
Production Capacity
50PCS/Month
Product Description

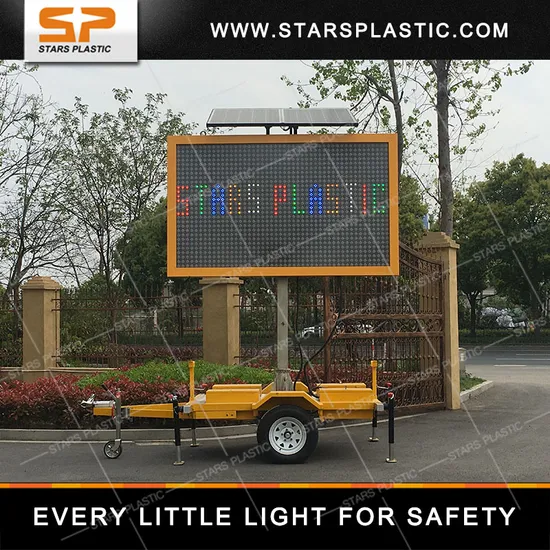

PORTABLE VARIABLE MESSAGE SIGN FOR TRAFFIC SAFETYVariable Message Signs (VMS) provide information to the public on a large, legible LED display.
VMS can present messages as text, graphics, or a combination of both.
Users can create custom messages easily by using wired LED controller or wireless computer / pad / phone to login in web system.
Full matrix VMS
FIVE-COLOR MESSAGE SIGN
Amber & Red & Green & Blue & White
Display size:2400x1400MM
Overall size:2600x1500MM
48 x 28 Full Matrix Display
Powder Coated Aluminium Enclosure
Anti-UV Suface * IP54 rating
Non-Glare UV polycarbonate screen
32 LEVELS Auto dimming photocells
7" LCD TOUCH SCREEN CONTROL included
VMS Trailer Specification
| Full length of trailer | 2100*2000*2400mm | |
| Display Size | 2479x1480mm (customized) | |
| Control box | Lockable, 57L X 36W X 36D CM | |
| Two Lockable Battery box | Quantity | 2 batteries( 12V 200AH each) Size of each Battery:516*253*212mm |
| Weight | 51kgs each | |
| Solar Panel Frame | Movements | 1)Able to rotate 360 with mast and lay flat for travel; 2)Tilting a little |
| Quantity | 2*187.5W(1330x840x35mm) | |
| Weight | 27KGS | |
| Voltage | 20V | |
| Tires | Lockable 185R14LT 102/100Q, steel-belted trailer tires | |
| Lift options | Actuator Hydraulic | |
| Legs | 4 legs adjustable to different level height and angles for uneven ground | |
| Others | Tow Bar | |
| Jockey Wheel | Included | |
| Mast | Galvanized | |
| Treatment | Powder coated | |
| Forklift holes | Included | |
| Trailer light | Included | |
