FTTH Internal/External Modulation CATV 1310/1550nm Fiber Optical Transmitter

Product Description

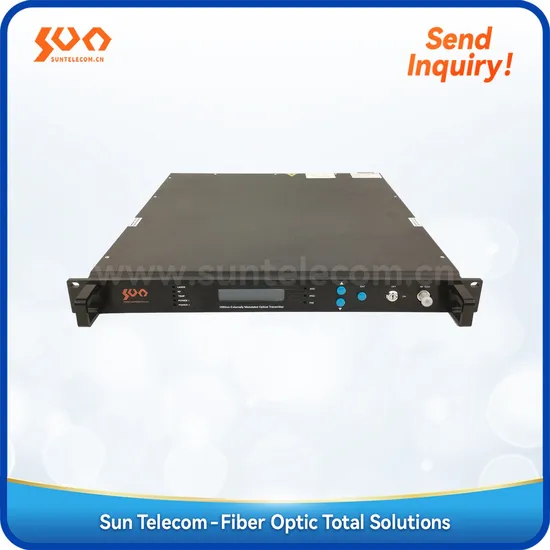

Product Description SUN-CATV-T15 Optical Transmitter
Sun Telecom's SUN-CATV-T15 series of optical transmitter is a transmission equipment of CATV used in the FTTH project and it changes RF signal to optical signal that can transmit maximum 20km distance instead of 400m.
Features DFB lasers support maximum output power 16mW Perfect pre-distortion circuit AGC automatic gain control LED displays the working conditions and trouble alarm Different networks can be optimized by OMI adjustment (External Modulation Optical Transmitter has this function)
Applications FTTH Solutions Cable television distribution network EOC network
Specifications

Parameters		Specification
Optic Power (mW )		2 ~ 16
Wavelength (nm )		1310/1550
Optical Connector		FC/APC, SC/APC (optional)
Max. Transmission (km)		20
Working Bandwidth (MHz)		45 ~ 1000
CNR (dB)		≥ 51
CTB (dB)		≥ 65
CSO (dB)		≥ 60
RF Input Power (dBµV)	AGC	80 ± 5
Band Unflatness (dB)		≤ 0.75
Power Loss (W)		≤ 30
Working Voltage (V)		AC: 90 ~ 265V DC: -48V (Optional)
Working Temperature (°C)		-20 ~ +85
Dimensions (mm)		483(L) x 380(W) x 44.5(H)
Weight (kg)		5.0

Standard Accessories

No.	Name	Unit	Quantity
1	Optical Transmitter	set	1
2	Power line	piece	1 or 2

Ordering Information
Example: SUN-CATV-T15D02-AC
Direct Modulation; Laser Wavelength: 1550nm; Optical Interface: SC/APC or FC/APC optional; One Output port, Output Power: ≥2mW; Transmission distance: < 20km; Single Power supply: 90~265V Related Products
