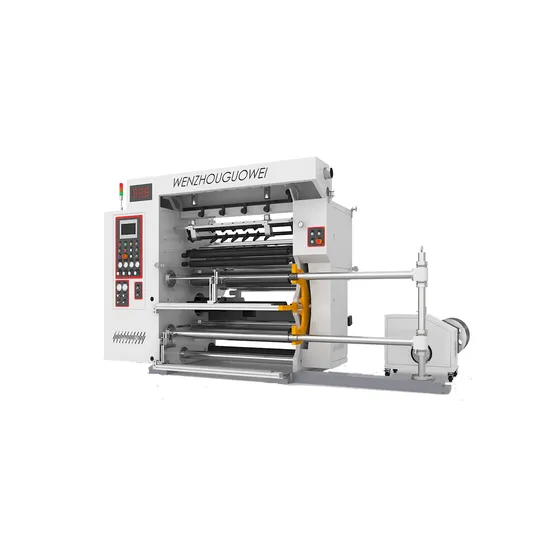

High Speed Servo Motor PLC Control Slitting Machine-450mpm

Product Description

Product Description Application and Features
The machine is suitable for slitting and rewinding PET/PVC/ adhesive,release paper,plastic material,etc.
PERFORMANCE AND FEATURES
1. The machine adopts three Servo motor control, automatic tension, center reeling way;
2. Auto counter meter, auto machine stop when had alarm.
3. The rewinding adopts A,B inflatable shaft,operate neatly and assemble conveniently.
4. The unwinding adopts ultrasonic wave correcting method.
5. The circular cutter with slitting slitter edge and automatic discharge device.
6. Continuous unwinding structure.
More details
Model:1300
Max.Diameter of raw material unwinding:φ800mm
Max.Diameter of raw material rewinding:φ600mm
Max.Width of slitting raw material:30-1300mm
Diameter of air swelling shaft:φ76mm/2pcs (3#)
6 inch slip shaft optional
The number of the reel at the same time:2 strips
7.Precision of slitting:±0.2mm
8.Max.speed:150-400m/min
9.power:about 20KW
11.Weight:About 3800 kg
Machine Configuration:
(1). Unwinding :unwinding part use Hydraulic shaftness
Machine rack use steel structure. Moveround use linear guide. Move around use static type correction system.EPC use CCD. Tension control:tension use brake control 10kg 1sets .Main Engineer(Surface friction type):Rack use high quality casting structure Driver and drive mechanism:
(1)Capstan roll use motor and reducer rate combining way
(2) Motor use servo motor: Shanghai Danma 5.5KW 1set
(3) Frequency converter 1set
Traction equipment:
Structure type: Active traction pneumatic press roller way
Driver way: main motor drive main drive roll, main axle drive main traction roll
The traction roller is treated with anti-skid adhesive tape, and the adhesive tape is imported cork adhesive tape
Slitting equipment:
Use circular knife slitting equipment structure
Flat knife use Shanghai, can freely adjust 10pcs
Slitting Precision:±0.2mm
the waste side discharge system adopts the high pressure fan2.2KW
Rewinding equipment:
Structure way: two pneumatic slip differential shafts
(1) Mechanical arm adopts linear guide mode
(2) The surface winding form principle is: the winding reel is close to the press roll synchronous winding
(3) Rewinding Roll use spline pneumatic shafts (3inch)
(4) Rewinding Motor use servo5.5KW
(5) The inverter 2pcs
Control unit
It's electrical control box and power supply together on the machine
Machine's control system including main engineer speed control, unwinding tension control,rewinding tension control, auto meter count etc control by PLC, touch screen use WEINVIEW Taiwan, PLC use Siemens Germany; and other control(Hydraulic pressure type)
(2) Pneumatic system components using made in China
(3) Steam pressure system components are imported
(4) bearings-NSK
(5)PLC auto meter counter, auto stop when alarm,auto fixed length.
(6)It can auto stop when it reached the setting meter.
Extra Equipment:(buyer responsible for it)
Power supply:3phase 4 wire switch; 380V 50HZ(can be customized)
Air :air compressor--customer provide st his side.

Main Technical Parameters

Model	WFQ1100/WFQ1300/WFQ1600
Max. slitting speed	450m/min
Max. unwinding DIA	800mm
Max. rewinding DIA	600mm
Max. unwinding width	1100mm/1300mm/1600mm
Total power	15KW
