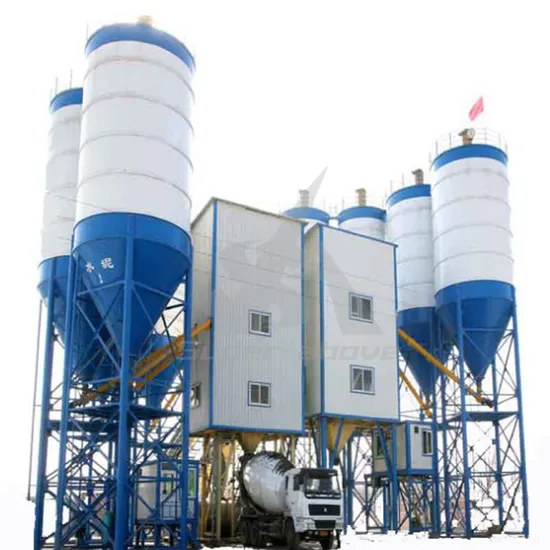

China Low Cost 180m3/H Concrete Batching Plant
Basic Info.
Model NO.
sd59
Machining Process
Vibrating Mixing
Structure
Spiral Type
Productivity
180m3/H
Feeding Height
1370mm
Vibrating Amplitude
1.2mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Yellow
Air Compressor
3kw
Electromagnetism Valve
1
Drawbar Pin
1
Batching Control Meter
Made in China
Circuit Breaker
Delixi
Connecting Cable and Accessories
Made in China
Cement Silo
100t/150t/200t/300t
Cement Screw
φ219*8
Hoisting Mixer System
Discharge Height 4.2m
Aggregate Hoisting and Measuring System
Made in China
Aggregate Feeding Type
Belt Conveying Type
Concrete Mixer Power
90 - 215.5kw
Name
Ready Mix Concrete Plant
Control System
Siemens PLC+PC
After-Sales Service Provided
Field Installation, Commissioning and Training
Transport Package
Naked in Container
Specification
CE
Trademark
Super-above
Origin
Jiangsu, China
HS Code
8474310000
Production Capacity
5000PC/Year
Product Description
Product Detail HZS180 Ready Mix Precast Concrete Equipment 180m3/hHZS Series Concrete Mixing Plant: Stable JS series mixer
Aggregate hopper:Seperate weinghing system,quite precise
Aggregate conveyor:Flat belt conveyor
Control system: Double controling computer, branded hardware,stable and easy to operate .
HZS180,apply JS 3000 mixer,it can well fulfill the need of road ,bridge ,dam and marine construction.With the combination of our rich experience and European teconology.Xin Da machinery has gotten a good reputation at home and abroard.The controlling system applies Siemens(PLC) and other branded hardware ,which help the operation be quite efficient and stable.
Meanwhile ,the weighing system is pricise,it helps the production of cement go on well.
HZS180 Ready Mix Precast Concrete Equipment 180m3/h Main Parameter
| Models | HZS180 | |
| Production(m3/h) | 180 | |
| Mixer | Models | JS3000 |
| Mixing power(kw) | 2*55 | |
| Output capability(m3) | 3 | |
| Aggregate size(mm) | ≤150 | |
| Hopper | Hopper capacity(m3) | 20 |
| Hopper quantity | 4 | |
| Conveyor capability(t/h) | 600 | |
| Scope and precision of weighing | Aggregate(kg) | 7000±2% |
| Cement(kg) | 1800±1% | |
| Water(kg) | 800±1% | |
| Admixture(kg) | 30±1% | |
| Total power(kw) | 172 | |
| Height of discharge(m) | ≥3.9 | |
