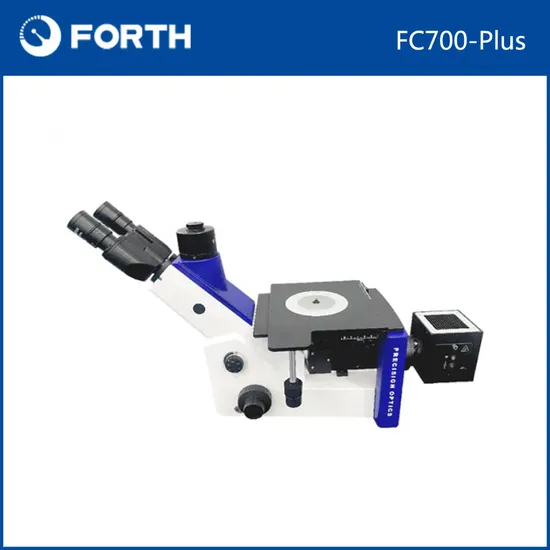

Advanced Inverted Metallographic Microscope for Metallurgy Labs

Product Description

Product Description Basic information

model	FC700
optical system	LIOS Unity achrommatic correction optical system
Amplification multiple range	40×~1000×
eye lens	10X Flat field eyepiece, Φ 18 (in mm)
objective lens;o	Infinite distance flat field euchromatic gold phase objective lens:4×/10×/20×/40×
	Optional long working distance infinite distance flat field objective lens:5×/10×/20×/50×/80×/100×(Dry)
observing tube	Triocular observation cylinder, 45 tilt, pupil distance adjustment 48-76mm; 70% observation, while 30% photography
revolving nosepiece	Four-hole converter (five-hole optional)
Thick fine-tuned focus device	Coarse micro coaxial focus, coarse tuning stroke 12mm, fine tuning each ring 0.2mm, grid value 2 µ m, coarse tuning with elastic adjustment
objective table;stage	Three-layer mechanical moving load platform, with an area of 180155mm, moving range of 7540mm and cursor scale of 0.1mm
Light source electrical	5 WLED, host safety low-voltage DC input: 5V~12A, 2A, adapter wide voltage input: 100V~240V
illuminator	Reflection Kohler lighting optical system
Polarizer (selected)	Defanizer
Camera interface	1 / 0.75 / 0.5 C-Mount interface
Digital camera device	Universal C-interface digital camera device and software system can be configured
Digital photography device	CAN ON, NIKON, OLYMPUS and other digital cameras can be configured
Metallographic analysis system	Optional professional metallographic analysis and rating software
instruments weight	Net weight: 7.5kg Gross weight: 10.5kg
Instrument size	Instrument size: 53 * 38 * 28 Package size: 65 * 51 * 35 (unit: cm)

Detailed Photos parameters and configuration

	objective lens	Digital aperture of N.A.	operating distance;
afocal Flat field gold phase objective	LPL 4×	0.10	19.37
	LPL 10×	0.25	15.86
	LPL 20×	0.40	1.04
	LPL 40×	0.65	0.67

Product Features: Using infinite distance optical system design for clear imaging quality Flat field achromatic gold phase objective lens for high resolution Kohler lighting system for uniform field of view 5W long life LED lighting source for safety Ergonomic design for comfortable operation Adjustable binocular observation cylinder for different heights Optional digital camera device and software for versatility Applicable Occasions: Factory testing, laboratory research, teaching, and experiments
Scope of Application: Metals, minerals, ceramics, electronics, etc.
