Atex Approved Wireless Mining LED Head Lamp Caplamp Helmet Lamp

Product Description

Product Description
KL1.2Ex LED cordless Miner's cap lamp ATEX (Ex ia I M1) certified, in accordance with Directive 2014/34/EU, complies with standard: EN 60079-0:2012, EN 60079-11:2012, EN 60079-35-1:2011, EN 50303:2000 It is specially designed for use in underground mining operations, tunneling. Adopts 1400mAh capacity lithium-ion batteries and latest LED light source, with all-in-one design, very small and light. The light source has1 main light for working and 4 auxiliary lights for emergency lighting, main light max illumination reaches to 3500Lux, working time more than 11 hours. Built-in micro-controller and multiple safety protective circuit, intelligent management of charging & discharging process ensure the safety and reliability. LED constant current driving mode ensures the light intensity of illumination basically remain unchanged after 11 hours' lighting. Product Parameters

Item			KL1.2Ex
Battery style			Li-ion
Rated capacity			1.4Ah
Rated voltage			3.7V
Lighting time			≥11h
Main light source	Working current		0.12A
	Max luminance (1m away from the lamp)	When lighting begins	≥3500 lx
		After lighting for 11h	≥2000 lx
Sub-light source rated power			0.2W
Life of cap lamp			2 years
Charging Voltage			(6-8)V
Charging time			≤8h
Explosion protection			Ex ia I Ma
Protection grade			IP65
Exterior dimensions			Φ67x82x73mm
Weight			0.2kg

Certifications

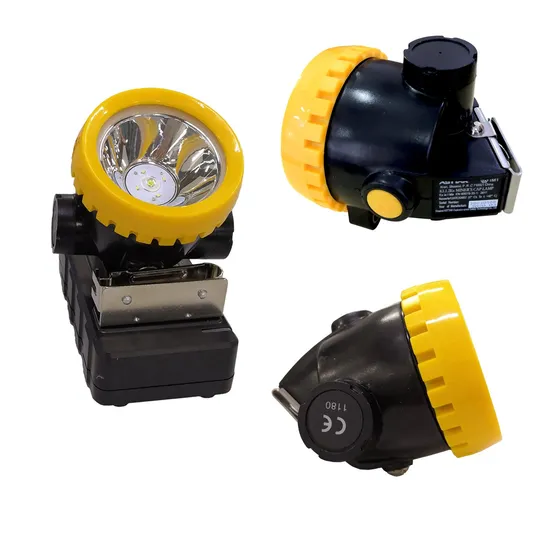

Detailed Photos
Packaging & Shipping

Company Profile
ASTTAR - a high-tech enterprise, founded in 1995, is engaged in the development and production of software and hardware products in the professional field of safety emergency, it has eight series and over a hundred types of products, its sales network covers the whole country, and its products are exported to dozens of countries and regions.
The company has a sound management system, established a safety production management system with a quality management system as the core, and introduced office automation and ERP management systems.
The company initiated the establishment of "Shaanxi ASTTAR Incubator Co., Ltd.", "Shaanxi Safety Industry Metrology Testing Co., Ltd.", and "Shaanxi Province Safety Industry Research Institute Co., Ltd.", and created a safety emergency industry supporting service system with ASTTAR as the core, devoting to creating an industry ecological industry chain, and striving to build ASTTAR into a respected international company.
We mainly export products of three categories:
1. Mining underground rescue product
2. Mining explosion-proof lamp
3. Mining explosion-proof instrument and meter

Our main products:
1. Mining self-rescuer
2. LED miner's cap lamp
3. LED Flame-proof laneway lamp
4. Mechanical and electronic anemometer
5. Isolated positive pressure oxygen breathing apparatus
6. Automatic resuscitator
7. Optical interference type methane detector
8. Portable multi-parameter gas detector
9. Infrared thermometer
10. Laser distance meter
11. Laser guider
