V10-295611 Sewing machine supplier digital direct drive compound feed industrial sewing machine

Product Description

Walking foot leather industrial sewing machine, post bed sewing machine

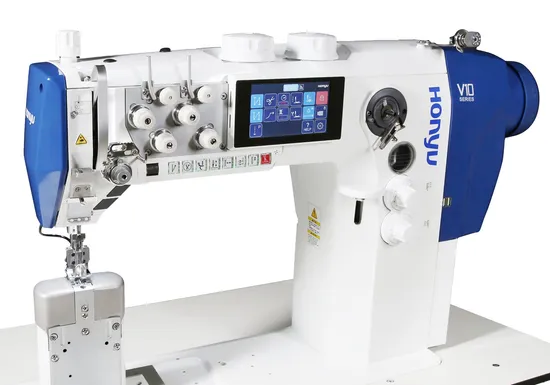

V10-295611 Double needle, post bed, direct drive, compound feed sewing machine

Model No.	V10-295611
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2500 s.p.m
Shuttle diameter	Ф26mm
Applied needle	DP×17 #18-#23
Needle quantity	2
Height of post bed	172mm
Thread size	Maximum thread 12 strands nylon
Max stitch length	9mm
Max alternating presser foot	9mm
Max presser foot lifting height	20mm
Auto trimming	X
Auto back tacking	√
Presser foot lifting height by air	√
Auto oil system	√
HP function	√
Halving positioning device	Back pneumatic halving
Operation space	351X 297mm
Multi-grade adjustable LED light	√
Electronic handwheel	√
LED touchscreen	5.1 inch
Function short-cut buttons	2
Function-related can be set	√
Double stitch length switch quickly	√
Pneumatic compensation thread clamp	√
Double stitch length switch quickly	√

Product Description
1.Post bed type double needle compound feeding sewing machine with ant an automatic thread cutting device.
2.Application example:For furniture and auto maticintertor pressing decorative topstitch sening operation.
Product Advantages
LCD touchscreen
LCD touchscreen provides a comfortable human-machinery screen and can be upgraded to 7 inches to enjoy internet function.
Multi-grade adjustable LED light
According to the demand, the operators can adjust the luminance by touching the screen.
IOT function (optional)
(1) The sewing machine with IOT can support the data uploaded and the operation instructions downloaded. Connected with the systems such as MES, APS, and WMS, it can provide the basic production equipment to build intelligent factories for our clients.
(2) It can alarm technicians, management personnel, and QC personnel in real time, and it is an important tool for rapid response in the production process.
Function-related can be set
(1) In the mode of the HP function, It can set electronic control mode, self-locking mode or constant-stitch mode, HP function is related with compensation thread clamp.
(2) Selecting the CP function is related with the presser foot lifting function,when the function of HP is turned on,the CP function will also be started.
(3) According to the habit or demand, flexibly setting function relevance improves automation.
Larger operation space
351*297mm, the larger operation space facilitated the handling of large-area workpieces.
Multi-function button group
Electronic handwheel, back tacking, cancel back tacking, transform instantaneously internal and external presser foot alternating amount, stitch compensation, compensation thread clamp, double stitch length switch quickly, pneumatic halving device and safe threading mode are satisfied with various usage scene.
Safe threading mode
Adjust the needle to the height which is most suitable for threading, and lock all functions of the machine to avoid personnel injury caused by misoperation during threading.
Electronic handwheel
The operator can easily turn the upper shaft(moving the needle rod up and down) using the electronic handwheel instead of manually rotating the handwheel.
The needle gauge can be set
V10 double needle series adopts metric needle gauge groups,6mm, 8mm, 10mm, and 12mm specifications are available.
Typical Field of Application
It's applied in normal sewing for car seat interiors and soft furniture like sofas.
