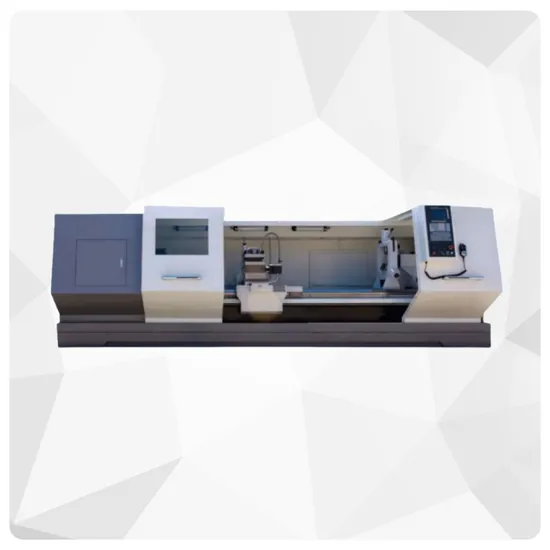

Heavy Duty for Industrial CNC Lathe Long Shaft Flat Bed CNC Lathe Machine
Basic Info.
Model NO.
CK6180B
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Other
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Machine Type
CNC Lathe
CNC System
GSK/Siemens/Fanuc
Max.Workpiece Length
1500/2000/3000/5000/6000mm
Max.Turning Length
1350/1850/2850/4850/5850mm
Max. Swing Over Bed Diameter
800mm
Max. Swing Over Slide Diameter
480mm
Distance Between Spindle Center to Guide
400mm
Distance Between Spindle Center to Groun
1130mm
Bed Guide Width
600mm
Spindle Through Hole Diameter
104mm
Spindle Nose
C11/A211
Spindle Front Taper
1:20/120
Spindle Center
Morse 6
Spindle Speed Step
4 Gears,Stepless
Gear Shift
Manual/Auto
Transport Package
Wooden Cases
Specification
3900*4390*5390mm
Trademark
HAIDI
Origin
China
HS Code
8458110090
Production Capacity
30 Sets/Month
Packaging & Delivery
Package Size
435.00cm * 230.00cm * 232.00cm
Package Gross Weight
3800.000kg
Product Description
Specification Parameter
| Item | Unit | CK6163B | CK6180B | CK61100B | CK61125B |
| CNC System | GSK/SIEMENS /FANUC | GSK/SIEMENS /FANUC | GSK/SIEMENS /FANUC | GSK/SIEMENS /FANUC | |
| Max. Workpiece length | mm | 1000/1500/2000 /3000 | 1500/2000/3000 /5000/6000 | 1500/2000/3000 /5000 | 1500/2000/3000 /5000 |
| Max. Turning length | mm | 850/1350/1850 /2850 | 1350/1850/2850 /4850/5850 | 1350/1850/2850/4850 | 1350/1850/2850 /4850 |
| Max. Swing over bed diameter | mm | 630 | 800 | 1000 | 1250 |
| Max. Swing over slide diameter | mm | 350 | 480 | 620 | 870 |
| Distance between spindle center to guide | mm | 315 | 400 | 500 | 625 |
| Distance between spindle center to ground | mm | 1145 | 1130 | 1150 | 1275 |
| Bed guide width | mm | 550 | 600 | 755 | 755 |
| Spindle through hole diameter | mm | 104 | 104 | 130 | 130 |
| Spindle nose | C11/A211 | C11/A211 | A2-15 | A2-15 | |
| Spindle speed range | r/min | 30~90;70~200;130~380 ;350~1000 | 30~90;70~200 ;130~380;350~1000 | 10~32;30~60;50~120 ;110~300 | 10~32;30~60 ;50~120;110~300 |
| Spindle speed step | 4gears,stepless | 4gears,stepless | Manual 4gears ,stepless | Manual 4gears ,stepless | |
| Gear shift | Manual/Auto | Manual/Auto | Manual | Manual | |
| Xaxis feed min. Setting unit | mm | 0.001 | 0.001 | 0.001 | 0.001 |
| Zaxis feed min. Setting unit | mm | 0.001 | 0.001 | 0.001 | 0.001 |
Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Exhibition Photos
Certificate
Packing&Shipping
