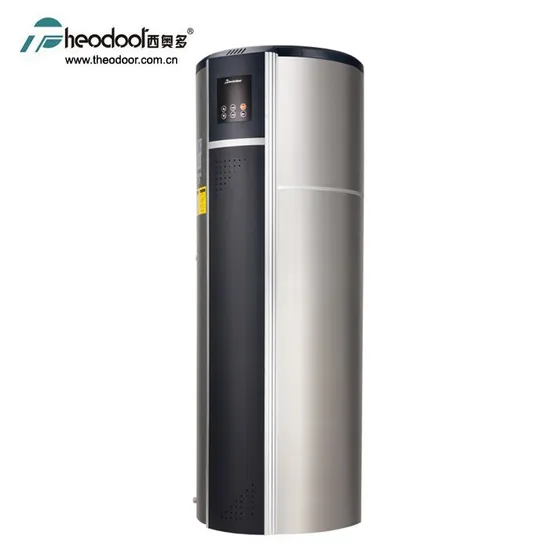

Theodoor X7 Heat Pump Water Heater R32 Gas Low Carbon Emission

Product Description

Specifications R32 Air Source Water Heater, all in one design, double ventilation duct at top, high COP performance. Auxiliary heater.
X7 air source water heater,
1. Double energy system by air source technology and smart electric water integrated technology.
2. All in one design, easy installation, save space.
3. Save energy , saving more energy by 70% comparing with ordinary water heater.
4. Protecting Environment. There isn't any burning gas from the water heater. The refrigerant won't contaminate the ozonosphere. So it benefits the society.
5. Supply water anytime, and not be affected by geographical and weather changing.
6. Intelligent control, the water temperature can be adjusted as needed and controlled by micro-computer automatically.

Model	RS-3.6FAD/150L	RS-3.6FAD/190L	RS-3.6FAD/260L	RS-3.6FAD/300L	RS-4.2FAD/260L	RS-4.2FAD/300L
Rated Input Power	0.8 KW	0.8 KW	0.8 KW	0.8 KW	1.2 KW	1.2 KW
Rated Heating Capacity	3.0 KW	3.0 KW	3.0 KW	3.0 KW	3.6 KW	3.6 KW
Heating ampere	4.0A	4.0A	4.0A	4.0A	5.5A	5.5A
Power Supply	220V~50Hz				220V~50Hz
Outlet water temperature	55 degrees				55 degrees
Capacity of Water Tank	150L	190L	260L	300L	260L	300L
Electric Heater Power(EHP)	2KW				2KW
Auxiliary heater ampere	9.1A				9.1A
Refrigerant	R134A /R410A /R32
Compressor	Panasonic
Condenser	External copper coil /Stainless steel coil (internal)
Evaporator	High efficiency finned heat exchanger
Size(mm)	650X1360	650X1490	650X1770	650X1900	650X1770	650X1900
Net Weight (Kg)	75	85	100	112	107	119
Noise (dB)	46	46	46	46	50	50
Water connection	3/4	3/4	3/4	3/4	3/4	3/4

Factory production:
STAR BRAND
Guangzhou Theodoor Technology Co., Ltd. is a professional high technology enterprise, focus on R&D and manufacture energy saving products such as Air Source Heat Pump, Air Curtain etc. As one of the star brands in Heat Pump industry, Theodoor produces a variety of Heat Pumps and exports to more than 80 countries and regions.

PRECISION PRODUCTION
Founded in 2002, Theodoor is located in Guangzhou innovation and development new area-Sino-Singapore Knowledge City (SSGKC) with an area of 30,000 square meters. We have modern production workshop, applying the most advanced industrial equipments and detecting instruments to provide product manufacturing precision and stability of extremely reliable guarantee. Theodoor has full series products which meet different customized demand in different countries or areas.

INNOVATION TECHNOLOGY
With consecutive creation and innovation, Theodoor has built up national standard environmental simulation laboratory as well as heat pump long-time running laboratory. What's more, Theodoor has accessed national invention and other patents more than 80 items, leading the quality and performance of product upgrading in the industry. Theodoor and the products had passed ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications etc.
FAQ:
Why the air source heat pump is the most energy saving water heater?
Air source heat pump is not direct heating by the heating element, but with a small amount of electric driving the main unit's compressor to work, the low temperature air is compressed to high temperature air, through the pipeline circulation system to heat the water, the power consumption is only 1/4 of the traditional electric water heater.
How to choose the suitable capacity?
Choose which sizes of water tank is related to the number of people using hot water, the number of bathrooms, whether there are bathtub, kitchens and other hot water consumption and so on.
